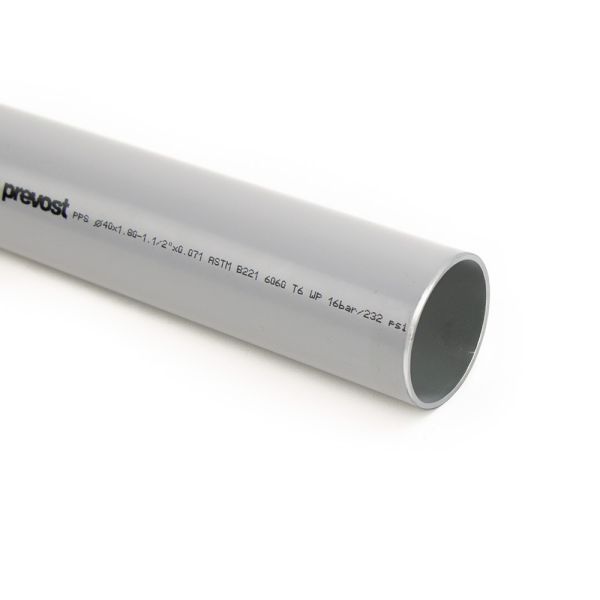

Grey Aluminium Vacuum Pipe

Loading...
Useful Information

Key Features / Tech Specs:

  • Manufacturer: Prevost
  • Material: Aluminium
  • Coating: Electrostatic paint
  • Medium: Air
  • Function: Vacuum
  • Rustproof
  • For use with Prevost aluminium fittings
  • UV & heat resistant
  • Sizes Available in 4mtrs: 16mm - 40mm
  • Sizes Available in 5.5mtrs: 20mm - 100mm (sold in packs of 10)

Pipe cannot be returned, no refunds or exceptions. This is due to the Bespoke, Physical and Technical characteristics of this industrial product. Please double-check your application and sizing, if in doubt call us, we are here to help.

Product Code Wall Thickness
406392 1.3mm
406393 1.3mm
406394 1.4mm
406395 1.5mm
406396 1.8mm
406397 2mm
406398 2mm
406399 2.4mm

Useful Info:

1. Ensure all cuts made to the pipe are straight and the inside and outside of each edge is de-burred

2. The pipe must be fully inserted into the fitting – to do this, simply mark the point using the tightening key, loosen the locking nut and with one motion twist and push the pipe into the fitting – it may help if you use a lubricated spray (non aggressive)

3. Use PTFE tape on all male threads unless a seal is supplied

4. Make sure the pipe is straight and level, clamping every 3 metres and where it may be necessary to ensure a strong bind to the wall or ceiling of the building.

5. Tighten all fittings by hand and once the system is in place, tighten using the PPS1 CLE key and torque wrench to the following points, starting at the lower setting – for example 25mm fittings – 21-35Nm

6. Once all fittings are tightened, set the compressor at 2 BAR and run for 5 minutes, then check each fitting for leaks, adjust if needed, and repeat the test at 8 BAR. Again check all and if the system is leak free



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
406392PV Grey Aluminium PPS Vacuum Pipe 4m x 16mm £33.15 30%
£23.21
406393PV Grey Aluminium Vacuum Pipe 10pk x 5.5m x 20mm £473.20 30%
£331.24
406394PV Grey Aluminium Vacuum Pipe 10pk x 5.5m x 25mm £585.26 30%
£409.68
406395PV Grey Aluminium Vacuum Pipe 10pk x 5.5m x 32mm £826.67 30%
£578.67
406396PV Grey Aluminium Vacuum Pipe 10pk x 5.5m x 40mm £1,113.97 30%
£779.78
406397PV Grey Aluminium Vacuum Pipe 10pk x 5.5m x 50mm £1,393.60 30%
£975.52
406398PV Grey Aluminium Vacuum Pipe 10pk x 5.5m x 63mm £1,764.10 30%
£1,234.87
406399PV Grey Aluminium Vacuum Pipe 10pk x 5.5m x 80mm £2,548.00 30%
£1,783.60
406400PV Grey Aluminium Vacuum Pipe 10pk x 5.5m x 100mm £3,707.60 30%
£2,595.32
486079PV Grey Aluminium Vacuum Pipe 10pk x 5.5m x 160mm £7,511.40 30%
£5,257.98
