JG Speedfit Brass Back Plate Elbow

Loading...
Useful Information

What is a Brass Back Plate Elbow Used For?

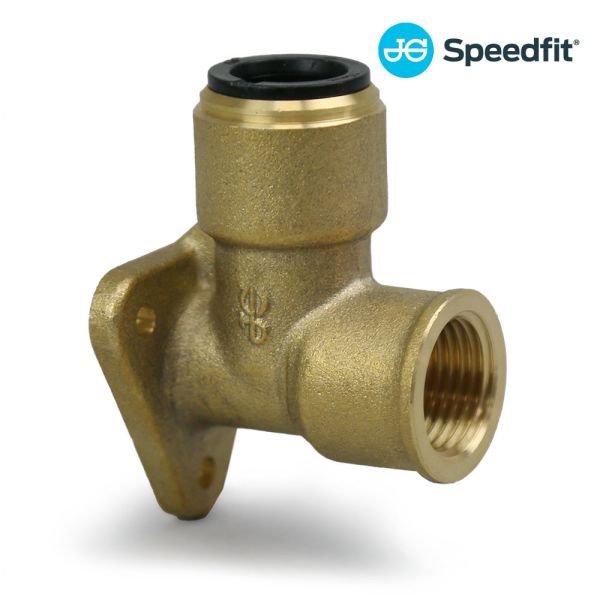

The JG Speedfit Brass Back Plate Elbow (also known as a wingback elbow) is a robust fitting designed to connect pipes with a female thread, making it particularly suitable for applications like bib taps. This durable connector combines the efficiency of a Speedfit connection with the strength of a brass back plate, providing a reliable 90° elbow suitable for both domestic and commercial plumbing installations.

Key Features

  • Robust Brass Construction: Ensures longevity and resistance to wear, offering a dependable solution for plumbing connections.
  • Instant Push-Fit Connection: Allows for quick and secure connections without the need for tools, simplifying installation and maintenance.
  • Integrated Back Plate: Ideal for mounting to walls or fixtures, providing a stable and secure installation point for bib taps and other fixtures.
  • Flame-Free Installation: Eliminates the need for soldering or hot works, enhancing safety and convenience during installation.
  • Compatible with Various Pipe Types: Works with Speedfit PEX, polybutylene plastic pipes (inserts required), and copper pipes, ensuring versatility across different plumbing systems.
  • Suitable for Multiple Systems: Can be used in hot and cold water systems as well as central heating, offering a comprehensive plumbing solution.

Specifications

  • Product Codes: 15WB (15mm x 1/2" BSP)
  • Max Working Pressure: 12 bar at 20°C
  • Max Working Temperature: Up to 95°C (temporary malfunction at 114°C)
  • Materials: The main body is made from Brass CW602N, with components like O-Rings from EPDM and collet teeth in Stainless Steel 301, ensuring durability.
  • Compatible Pipes: PEX, PB, and Copper
  • Demountable: Yes
  • Approvals: BSI, WRAS, and FDA
  • Guarantee: 50 years with JG Speedfit Layflat PB and PEX Barrier pipes​​​​​​​​​​.

Working Temperatures & Pressures

Application Usual Working Temperature °C Max Working Temperature °C Max Working Pressure (bar)
Cold Water
(indirect & direct mains)
20 20 12.5
Central Heating 82 105, short term malfunction at 114 3
Hot Water
(including unvented cylinders)
65 95 6

Installation Instructions

  1. Preparation: Ensure the pipe ends are clean and cut squarely.
  2. Insertion: Push the pipe fully into the fitting until it reaches the tube stop.
  3. Locking: Twist the cap clockwise to lock the pipe in place.
  4. Demounting: To release, unlock the cap and push the collet towards the body, then pull the pipe out.

Downloads

John Guest Speedfit Brass Back Plate Elbow Datasheet

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
