Flamco BSI-HDI Galvanised Clips

Loading...

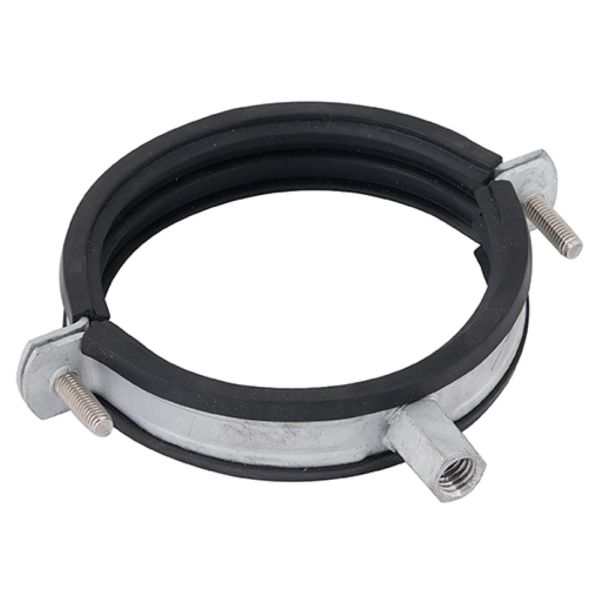

main product photo
More Info
Useful Information

Technical Specification

  • Material: Hot-dip galvanised steel
  • Lining: EPDM rubber
  • Noise Suppression: 17 dB(A) (ISO 3822-1 compliant)
  • Max Working Load: Up to 3000 N (varies by size)
  • Pipe Compatibility: Sizes from 8mm to 220mm (DIN 2448, DIN EN 1057)
  • Safety Factor: Minimal breaking load safety factor of 3
  • Temperature Range: -40°C to +120°C
  • Connection: M 8/10, stainless steel bolts

These pipe clips are not suitable for plastic pipe systems.

Description

Flamco BSI-HDI Galvanised Pipe Clips are robust, hot-dip galvanised pipe clips designed to secure pipes to walls or ceilings in both indoor and outdoor settings. These clips are ideal for applications that require enhanced corrosion resistance, such as industrial, commercial, and outdoor installations. Equipped with noise-suppressing EPDM rubber lining, these pipe clips effectively reduce vibration and noise transmission, providing reliable performance in demanding environments.

Key Features

  • Hot-Dip Galvanisation: Galvanised to BS EN 1461:2009 standards, offering superior corrosion protection for indoor and outdoor applications.
  • Noise Reduction: Fitted with EPDM rubber lining, suppressing noise by up to 17 dB(A) in compliance with ISO 3822-1.
  • High Load Capacity: Built with reinforcement ribs to support high working loads, providing secure support for pipes of varying sizes.
  • Universal Fit: Compatible with multiple pipe diameters from 8mm to 220mm, meeting DIN 2448 and DIN EN 1057 standards.
  • Enhanced Stability: Constructed with stainless steel bolts and anti-loss rings, featuring a slot-and-cross head for secure and flexible installation.
  • Temperature Resilience: Suitable for temperatures ranging from -40°C to +120°C, ensuring versatility across extreme conditions.


Product Code Size Connection Strip Dimensions Max. Working Load (N) A (mm) B (mm) C (mm)
385730 12-14mm M8/10 20 x 1.5 1000 58 15 16
385731 15-19mm M8/10 20 x 1.5 1000 62 18 16
385732 20-25mm M8/10 20 x 1.5 1000 69 21 16
385733 26-30mm M8/10 20 x 1.5 1000 74 23 16
385734 32-36mm M8/10 20 x 1.5 1000 81 26 16
385735 38-43mm M8/10 20 x 1.5 1000 87 30 16
385736 44-49mm M8/10 20 x 1.5 1000 94 33 16
385737 50-55mm M8/10 20 x 1.5 1000 103 36 16
385738 56-61mm M8/10 20 x 1.5 1000 106 39 16
385739 62-67mm M8/10 20 x 2.0 1300 113 42 16
385740 68-73mm M8/10 20 x 2.0 1300 123 45 16
385741 75-80mm M8/10 20 x 2.0 1300 128 48 16
385742 82-86mm M8/10 20 x 2.0 1300 134 51 16
385743 87-92mm M8/10 20 x 2.0 1300 141 54 16
385744 95-102mm M8/10 20 x 2.5 2150 158 58 16
385745 108-116mm M8/10 20 x 2.5 2150 170 65 16
385746 121-127mm M8/10 20 x 2.5 2150 185 70 16
385747 131-141mm M8/10 20 x 2.5 2150 195 77 16
385748 159-163mm M8/10 20 x 2.5 2150 215 88 16
385749 165-169mm M8/10 20 x 2.5 2150 226 91 16
385750 192-202mm M8/10 20 x 3.0 3000 265 107 16
385751 210-220mm M8/10 20 x 3.0 3000 274 117 16



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



More Info
Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
385730Flamco Pipe Clip BSI HDI Galvanised M8-M10 x 12-14mm £23.60 50%
£11.80
385731Flamco Pipe Clip BSI HDI Galvanised M8-M10 x 15-19mm £24.24 50%
£12.12
385732Flamco Pipe Clip BSI HDI Galvanised M8-M10 x 20-25mm £25.56 50%
£12.78
385733Flamco Pipe Clip BSI HDI Galvanised M8-M10 x 26-30mm £26.84 50%
£13.42
385734Flamco Pipe Clip BSI HDI Galvanised M8-M10 x 32-36mm £29.24 50%
£14.62
385735Flamco Pipe Clip BSI HDI Galvanised M8-M10 x 38-43mm £30.60 50%
£15.30
385736Flamco Pipe Clip BSI HDI Galvanised M8-M10 x 44-49mm £31.80 50%
£15.90
385737Flamco Pipe Clip BSI HDI Galvanised M8-M10 x 50-55mm £33.96 50%
£16.98
385738Flamco Pipe Clip BSI HDI Galvanised M8-M10 x 56-61mm £35.16 50%
£17.58
385739Flamco Pipe Clip BSI HDI Galvanised M8-M10 x 62-67mm £41.72 50%
£20.86
385740Flamco Pipe Clip BSI HDI Galvanised M8-M10 x 68-73mm £43.96 50%
£21.98
385741Flamco Pipe Clip BSI HDI Galvanised M8-M10 x 75-80mm £45.92 50%
£22.96
385742Flamco Pipe Clip BSI HDI Galvanised M8-M10 x 82-86mm £48.12 50%
£24.06
385743Flamco Pipe Clip BSI HDI Galvanised M8-M10 x 87-92mm £49.60 50%
£24.80
385744Flamco Pipe Clip BSI HDI Galvanised M8-M10 x 95-102mm £75.36 50%
£37.68
385745Flamco Pipe Clip BSI HDI Galvanised M8-M10 x 108-116mm £61.28 50%
£30.64
385746Flamco Pipe Clip BSI HDI Galvanised M8-M10 x 121-127mm £66.32 50%
£33.16
385747Flamco Pipe Clip BSI HDI Galvanised M8-M10 x 131-141mm £70.84 50%
£35.42
385749Flamco Pipe Clip BSI HDI Galvanised M8-M10 x 165-168mm £82.52 50%
£41.26
385750Flamco Pipe Clip BSI HDI Galvanised M8-M10 x 192-202mm £132.68 50%
£66.34
385751Flamco Pipe Clip BSI HDI Galvanised M8-M10 x 210-220mm £122.84 50%
£61.42
