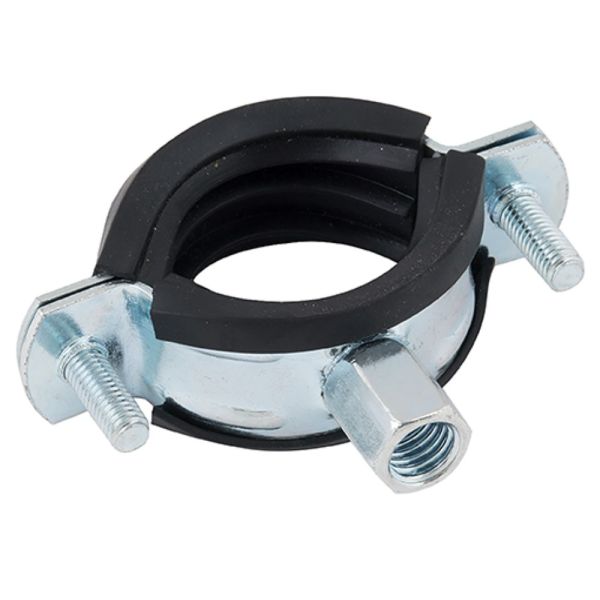

Flamco BSI EPDM Pipe Clips

Skip to the end of the images gallery

Skip to the beginning of the images gallery

More Info

Useful Information

Technical Specification

Material: Electrolytically zinc-plated steel
Lining: EPDM rubber
Noise Suppression: 17 dB(A) (ISO 3822-1 compliant)
Temperature Range: -40°C to +120°C
Max Working Load: Up to 3000 N (varies by size)
Pipe Compatibility: DIN 2448, DIN EN 1057
Available Diameters: 8mm to 220mm
Safety Factor: Minimal breaking load safety factor of 3

These pipe clips are not suitable for plastic pipe systems.

Description

Flamco BSI EPDM Clips are premium universal pipe clips designed for securely mounting pipes to walls or ceilings. Ideal for various applications in plumbing, heating, and industrial systems, these clips provide a stable and reliable hold for pipes across a wide range of diameters. With their noise-suppressing EPDM rubber lining, Flamco BSI Clips effectively reduce operational noise, making them an excellent choice for installations where acoustic dampening is essential.

Key Features

Universal Fit: Compatible with multiple pipe sizes as per DIN 2448 and DIN EN 1057 standards, covering diameters from 8mm to 220mm.
Noise Reduction: The EPDM rubber lining achieves sound suppression of up to 17 dB(A), minimising noise transmission and vibration.
Enhanced Durability: Electrolytically zinc-plated for added corrosion resistance, suitable for demanding environments.
Secure Construction: Designed with two bolts featuring anti-loss rings, reinforced grooves to maintain shape, and a versatile slot-and-cross head bolt.
Wide Temperature Range: Operational between -40°C and +120°C, ensuring performance in extreme temperatures.
High Load Capacity: Rated with maximum working loads up to 3000 N, depending on the clip size, providing robust support for heavy-duty applications.

Product Code	Size (mm)	Connection	Strip Dimensions (mm)	Max. Working Load (N)	A (mm)	B (mm)	C (mm)
385644	12-14mm	M8/10	20 x 1.5	1000	58	15	16
385645	15-19mm	M8/10	20 x 1.5	1000	62	18	16
385646	20-25mm	M8/10	20 x 1.5mm	1000	69	21	16
385647	26-30mm	M8/10	20 x 1.5	1000	74	23	16
385648	32-36mm	M8/10	20 x 1.5mm	1000	81	26	16
385649	38-43mm	M8/10	20 x 1.5	1000	87	30	16
385650	44-49mm	M8/10	20 x 1.5	1000	94	33	16
385651	50-55mm	M8/10	20 x 1.5	1000	103	36	16
385652	56-61mm	M8/10	20 x 1.5	1000	106	39	16
385653	62-67mm	M8/10	20 x 2.0	1300	113	42	16
385654	68-73mm	M8/10	20 x 2.0	1300	123	45	16
385655	75-80mm	M8/10	20 x 2.0	1300	128	48	16
385656	82-86mm	M8/10	20 x 2.0	1300	134	51	16
385657	87-92mm	M8/10	20 x 2.0	1300	141	54	16
385658	95-102mm	M8/10	20 x 2.5	2150	158	58	16
385659	108-116mm	M8/10	20 x 2.5	2150	170	65	16
385660	121-127mm	M8/10	20 x 2.5	2150	185	70	16
385661	131-141mm	M8/10	20 x 2.5	2150	195	77	16
385662	159-163mm	M8/10	20 x 2.5	2150	215	88	16
385663	165-169mm	M8/10	20 x 2.5	2150	226	91	16
385664	192-202mm	M8/10	20 x 3.0	3000	265	107	16
385665	210-220	M8/10	20 x 3.0	3000	274	117	16

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
385644	Flamco Pipe Clip BSI EPDM Lining M8-M10 x 12-14mm	£2.88	50%	£1.44
385645	Flamco Pipe Clip BSI EPDM Lining M8-M10 x 15-19mm	£2.96	50%	£1.48
385646	Flamco Pipe Clip BSI EPDM Lining M8-M10 x 20-25mm	£3.12	50%	£1.56
385647	Flamco Pipe Clip BSI EPDM Lining M8-M10 x 26-30mm	£3.36	50%	£1.68
385648	Flamco Pipe Clip BSI EPDM Lining M8-M10 x 32-36mm	£3.64	50%	£1.82
385649	Flamco Pipe Clip BSI EPDM Lining M8-M10 x 38-43mm	£3.96	50%	£1.98
385650	Flamco Pipe Clip BSI EPDM Lining M8-M10 x 44-49mm	£4.12	50%	£2.06
385651	Flamco Pipe Clip BSI EPDM Lining M8-M10 x 50-55mm	£4.48	50%	£2.24
385652	Flamco Pipe Clip BSI EPDM Lining M8-M10 x 56-61mm	£5.60	50%	£2.80
385653	Flamco Pipe Clip BSI EPDM Lining M8-M10 x 62-67mm	£6.64	50%	£3.32
385654	Flamco Pipe Clip BSI EPDM Lining M8-M10 x 68-73mm	£7.04	50%	£3.52
385655	Flamco Pipe Clip BSI EPDM Lining M8-M10 x 75-80mm	£7.44	50%	£3.72
385656	Flamco Pipe Clip BSI EPDM Lining M8-M10 x 82-86mm	£7.76	50%	£3.88
385657	Flamco Pipe Clip BSI EPDM Lining M8-M10 x 87-92mm	£8.92	50%	£4.46
385658	Flamco Pipe Clip BSI EPDM Lining M8-M10 x 95-102mm	£9.44	50%	£4.72
385659	Flamco Pipe Clip BSI EPDM Lining M8-M10 x 108-116mm	£9.44	50%	£4.72
385660	Flamco Pipe Clip BSI EPDM Lining M8-M10 x 121-127mm	£14.60	50%	£7.30
385661	Flamco Pipe Clip BSI EPDM Lining M8-M10 x 131-141mm	£15.76	50%	£7.88
385662	Flamco Pipe Clip BSI EPDM Lining M8-M10 x 159-163mm	£17.92	50%	£8.96
385663	Flamco Pipe Clip BSI EPDM Lining M8-M10 x 165-168mm	£18.32	50%	£9.16
385664	Flamco Pipe Clip BSI EPDM Lining M8-M10 x 192-202mm	£23.48	50%	£11.74
385665	Flamco Pipe Clip BSI EPDM Lining M8-M10 x 210-220mm	£25.52	50%	£12.76
