Plastlock Coupling Plastic to Plastic - Below Ground

Plastlock Coupling Plastic to Plastic - Below Ground

Skip to the beginning of the images gallery

Useful Information

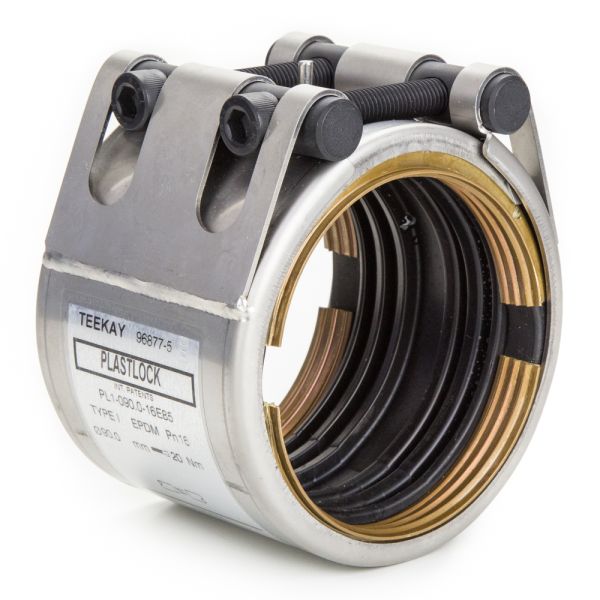

Plastlock couplings, from Teekay, are used to connect plastic pipe lengths together with speed and ease without the need for gluing or fusion technology.

They incorporate Teekay multiple seal gaskets with three anchoring rings staggered at different heights, which hold the two lengths of pipe together, locking them permanently in position.

These couplings are suitable for use with plastic pipe materials including Polyethylene, Polypropylene, polybutylene, PVC-C, PVC-U and ABS.

Manufacturer	Teekay
Casing	AISI 304/DIN 1.4301
Fasteners	AISI 316/316L
Gasket	EPDM/NBR/HNBR/Silicone
Pressure Rating	up to 16 bar
Type	2 - Below ground
Sizes	40mm - 315mm
Standards	WIS-4-24-01 BS 8561:2013

teekay-plastlock-coupling

Product Code	D1 (mm)	W1 (mm)	PN	D2 (mm)	D3 (mm)	D4 (mm)	Screw Size	Weight (kg)
402883	40	85	16	57	69	132	2 x M8	0.42
402884	50	85	16	67	83	134	2 x M8	0.71
402885	63	88	16	80	96	145	2 x M8	0.90
402886	75	88	16	93	108	184	2 x M10	0.95
402887	90	88	16	107	123	193	2 x M10	1.05
402888	110	88	16	128	148	208	2 x M10	1.41
402889	125	89	16	144	161	219	2 x M10	1.75
402890	140	115	16	159	184	241	2 x M12	2.65
402891	160	116	16	180	206	258	2 x M12	3.15
402892	180	119	10	-	-	-	-	-
402893	200	120	10	226	252	321	2 x M16	6.70
402894	225	120	10	251	278	342	2 x M16	6.90
402895	250	120	10	276	302	364	2 x M16	7.30
402896	315	120	10	341	368	418	2 x M16	9.20

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
402883	TK Plastlock Coupling T2 16 Bar 40mm	£206.36	40%	£123.82
402884	TK Plastlock Coupling T2 16 Bar 50mm	£209.23	40%	£125.54
402885	TK Plastlock Coupling T2 16 Bar 63mm	£279.47	40%	£167.68
402886	TK Plastlock Coupling T2 16 Bar 75mm	£281.06	40%	£168.64
402887	TK Plastlock Coupling T2 16 Bar 90mm	£288.92	40%	£173.35
402888	TK Plastlock Coupling T2 16 Bar 110mm	£309.93	40%	£185.96
402889	TK Plastlock Coupling T2 16 Bar 125mm	£330.47	40%	£198.28
402890	TK Plastlock Coupling T2 16 Bar 140mm	£524.71	40%	£314.83
402891	TK Plastlock Coupling T2 16 Bar 160mm	£576.71	40%	£346.03
402892	TK Plastlock Coupling T2 10 Bar 180mm	£593.52	40%	£356.11
402893	TK Plastlock Coupling T2 10 Bar 200mm	£1,027.09	40%	£616.25
402894	TK Plastlock Coupling T2 10 Bar 225mm	£1,058.13	40%	£634.88
402895	TK Plastlock Coupling T2 10 Bar 250mm	£1,083.22	40%	£649.93
402896	TK Plastlock Coupling T2 10 Bar 315mm	£1,668.23	40%	£1,000.94
