Useful Information

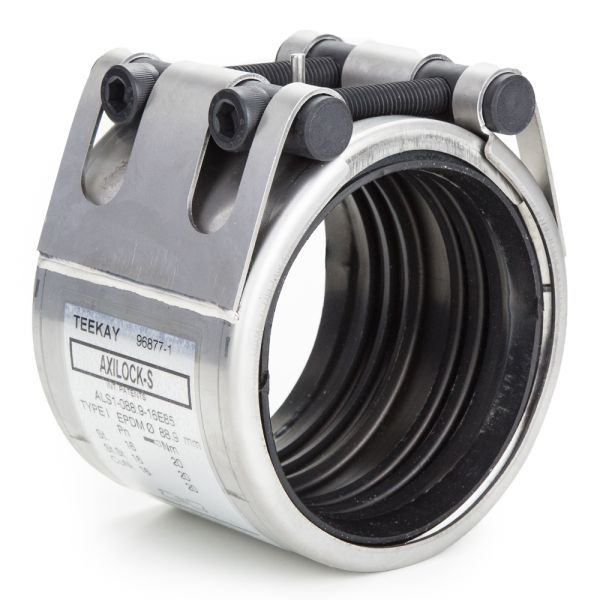

Axilock-S couplings, from Teekay, are used to connect plain-end pipe lengths together with speed and ease without the need for gluing or fusion technology. The 'S' in Axilock-S denotes that the couplings are single casing fittings. Double casing versions are available from 426mm fittings up to 637mm.

They incorporate grip rings at either end of the fitting and a rubber lining throughout, locking the pipes in position ensuring corrosion resistance throughout the life of the coupling.

These couplings are suitable for use with pipe materials including cast and ductile iron drainage EN877 pipe.



Manufacturer Teekay
Casing AISI 304/DIN 1.4301
Fasteners Alloy Steel, Coated
Gasket EPDM/NBR/H-NBR/FKM/VMQ
Pressure Rating up to 10 bar
Type 1 - Above ground
Sizes 57mm - 637mm
Standards DIN 86128 Form G (axial restrained)



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
402963TK Axilock-S Coupling T1 EN877 10 Bar 57mm to 60mm £65.81 40%
£39.49
402964TK Axilock-S Coupling T1 EN877 10 Bar 77mm to 80mm £72.20 40%
£43.32
402965TK Axilock-S Coupling T1 EN877 10 Bar 109mm to 112mm £77.91 40%
£46.75
402966TK Axilock-S Coupling T1 EN877 10 Bar 133mm to 137mm £116.61 40%
£69.97
402967TK Axilock-S Coupling T1 EN877 10 Bar 158mm to 162mm £132.29 40%
£79.37
402968TK Axilock-S Coupling T1 EN877 10 Bar 207mm to 212mm £214.19 40%
£128.51
402969TK Axilock-S Coupling T1 EN877 10 Bar 271mm to 276mm £755.86 40%
£453.52
402970TK Axilock-S Coupling T1 EN877 10 Bar 323mm to 329mm £773.05 40%
£463.83
402971TK Axilock Coupling T1 EN877 10 Bar 426mm to 431mm £858.05 40%
£514.83
402972TK Axilock Coupling T1 EN877 6 Bar 528mm to 534mm £1,264.86 40%
£758.92
402973TK Axilock Coupling T1 EN877 4 Bar 631mm to 637mm £1,350.11 40%
£810.07
