Axiflex Offset Coupling Plastic / Metal - Below Ground

Loading...
Useful Information

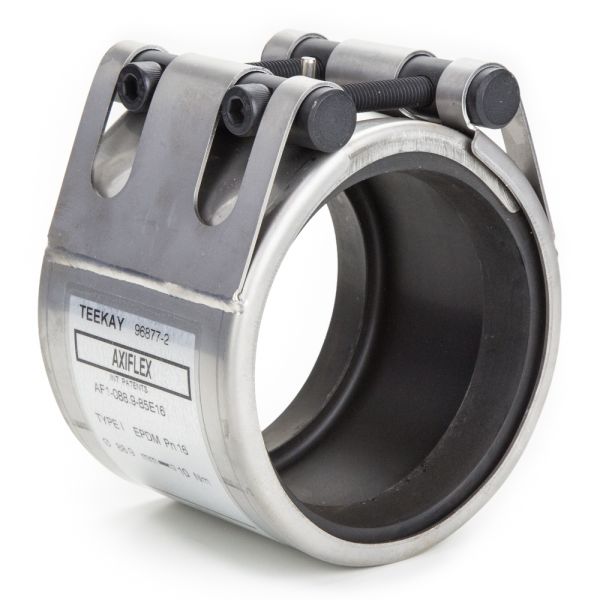

Axiflex couplings, from Teekay, are used to connect plain-end pipe lengths together allowing for expansion and contraction, but mainly for angulation of pipe.

These couplings are suitable for use with pipe materials including carbon steel, stainless steel, copper, cast and ductile iron, MDPE, HDPE, PVC, uPVC, ABS and more.



Manufacturer Teekay
Casing AISI 304/DIN 1.4301
Fasteners AISI 316/316L
Gasket EPDM/NBR/H-NBR/FKM/VMQ
Pressure Rating up to 16 bar
Type 2 - Below ground
Sizes 110mm - 160mm



teekay-axiflex-coupling

Product Code D1 (mm) W1 (mm) PN W2 (mm) D2 (mm) D3 (mm) Screw Size Weight (kg)
402993 110 85 16 42 130 149 2 x M8 1.60
402994 160 110 16 67 181 203 2 x M10 2.50



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
402993TK Axiflex Coupling T2 16 Bar 110mm £157.80 40%
£94.68
402994TK Axiflex Coupling T2 16 Bar 160mm £224.83 40%
£134.90
