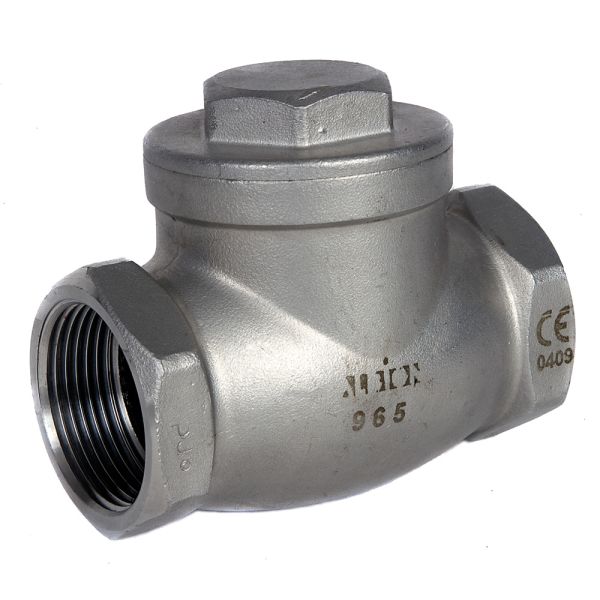

Stainless Steel Swing Check Valve

Loading...
Useful Information

Key Features / Tech Specs:

  • Body Material: Stainless Steel
  • Thread Type: BSPP
  • Max. Pressure 16 bar
  • Metal seats
  • PTFE Joint Gasket
  • Temperature Range -25°C - 180°C
ALB-art965-diagram Number Part Name Material
1 Body CF8M
2 Disc CF8M
3 Pipe Plug Stainless Steel 316
4 Plug Gasket PTFE
5 Body Gasket PTFE
6 Cap CF8M
Product Code Thread (Inch) d (mm) L (mm) H (mm) Weight (Kgs)
353870 1/2 15 63 42 0.25
353871 3/4 20 74 46 0.34
353872 1 25 85 50 0.47
353873 1 1/4 32 101 54 0.76
353874 1 1/2 40 115 64 1.03
353875 2 50 135 71 1.45

ALB-art965-Graph



Useful Info:

Available in sizes up to 2".

These Swing Check Valves allow flow in a single direction and prevent back flow.

A hex nut above the unit allows for easy maintenance.



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
