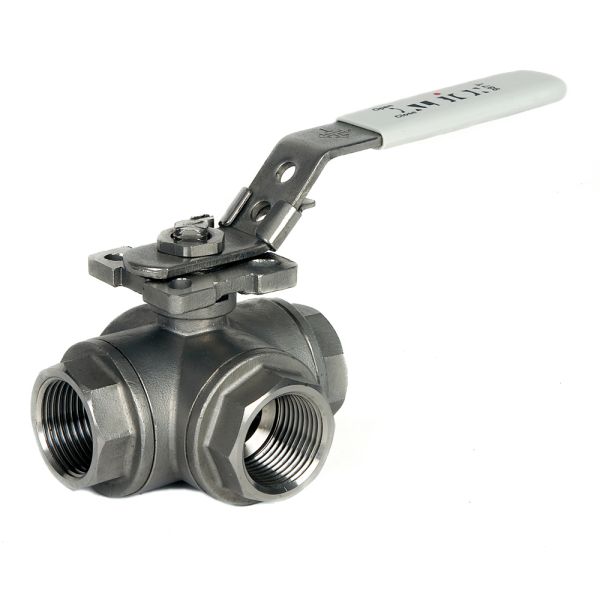

Stainless Steel Ball Valve 3 Way L Port
Useful Information
Key Features / Tech Specs:
- Body Material: Stainless Steel
- Thread Type: BSPT
- PTFE/Viton Seals
- RPTFE (15%) Seats
- Max. Pressure 82 bar (1/4" - 1")
- Max. Pressure 69 bar (1 1/4" - 1 1/2")
- Max. Pressure 62 bar (2")
- Reduced Bore
- Locking Device
- Temperature Range -25°C - 200°C
 |
Number | Part Name | Material |
| 1 | Cap | CF8M | |
| 2 | Gasket | PTFE | |
| 3 | Ball Seat | R-PTFE (15%) | |
| 4 | Ball | Stainless Steel 316 | |
| 5 | Body | CF8M | |
| 6 | Stem | Stainless Steel 316 | |
| 7 | Thrust Washer | PTFE | |
| 8 | O Ring | Viton | |
| 9 | Stem Packing | PTFE | |
| 10 | Stem Ring | Stainless Steel 316 | |
| 11 | Bellevlle Washer | Stainless Steel 304 (301) | |
| 12 | Nut | Stainless Steel 304 | |
| 13 | Plate Washer | Stainless Steel 304 | |
| 14 | Nut Stopper | Stainless Steel 304 | |
| 15 | Lock Device | Stainless Steel 304 | |
| 16 | Handle | Stainless Steel 304 | |
| 17 | Handle Sleeve | Plastic | |
| 18 | Stop Pin | Stainless Steel 304 |
| Product Code | Thread (Inch) | d (mm) | L (mm) | H (mm) | W (mm) | h (mm) | F (mm) | A (mm) | C (mm) | Weight (Kgs) |
| 353913 | 1/4 | 9.5 | 75 | 66 | 130 | 36.8 | 37.5 | 57.5 | 9 | 0.7 |
| 353914 | 3/8 | 11 | 75 | 66 | 130 | 36.8 | 37.5 | 57.5 | 9 | 0.67 |
| 353915 | 1/2 | 12 | 75 | 66 | 130 | 36.8 | 37.5 | 57.5 | 9 | 0.63 |
| 353916 | 3/4 | 15 | 85 | 72 | 161 | 41.2 | 42.5 | 65.5 | 11 | 0.94 |
| 353917 | 1 | 20 | 100 | 77 | 161 | 46.5 | 50 | 79 | 11 | 1.39 |
| 353918 | 1 1/4 | 25 | 122 | 92 | 203 | 56 | 61 | 97 | 14 | 2.91 |
| 353919 | 1 1/2 | 32 | 131 | 96 | 203 | 60 | 65.5 | 106.5 | 14 | 3.66 |
| 353920 | 2 | 40 | 158 | 107 | 203 | 70.5 | 79 | 129 | 14 | 6.31 |
Â
Useful Info:
Available in sizes up to 2".
Â
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
