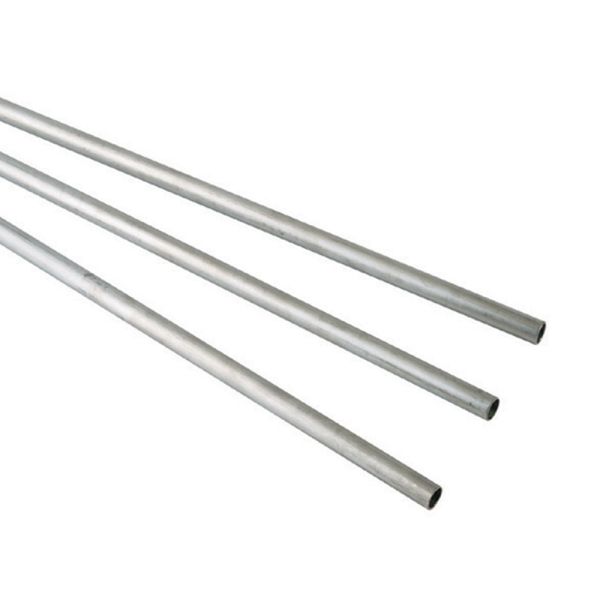

Stainless Steel Pipe 316 Schedule 40 - Inch
Useful Information
Key Features / Tech Specs & Dimensions:
- Material: stainless steel (316)
- Pipe dimension relates to nominal bore or ID
- Size specification: ASTM A312 / AMSE SA312-A530
- Schedule 40
- Conforms to MR-01-75, DIN 50049 3.1B
| Product Code | Nominal Bore (inch) | Wall Thickness (mm) | Working Pressure (psi) | Test Pressure (psi) |
| 360228 | ⅛ | 1.73 | 4977 | 6808 |
| 360229 | ¼ | 2.24 | 4833 | 6611 |
| 360230 | ⅜ | 2.31 | 2986 | 4085 |
| 360231 | ½ | 2.77 | 3842 | 5256 |
| 360232 | ¾ | 2.87 | 3185 | 4358 |
| 360233 | 1 | 3.38 | 2995 | 4098 |
| 360234 | 1¼ | 3.56 | 2499 | 3453 |
| 360235 | 1½ | 3.68 | 2257 | 3134 |
| 360236 | 2 | 3.91 | 1865 | 2608 |
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
Useful Info:
This A312 specification 316 stainless steel pipe is suitable for use in water, petrochemical, marine, food and beverage, pharmaceutical, sewerage, power generation, and pulp papermaking processing applications.
316 stainless steel pipe has excellent corrosive resistance and is suited for a range of atmospheric environments.
This stainless steel pipe is ideal for use with our range of 150lb class stainless steel fittings.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
