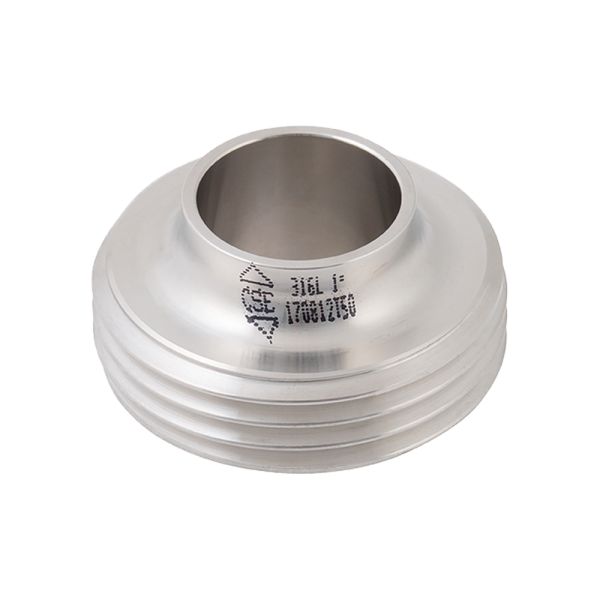

Weld Male
Useful Information
Key Features / Tech Specs & Dimensions:
- Material: Stainless Steel
- Manufactured to DIN 316
- Sizes 1" - 4"
| Product Code | Nominal Size (inch) | ØA | ØB | C | L |
| 387070 | 1 | 22.1 | 25.4 | 45.72 | 27 |
| 387071 | 1.5 | 34.8 | 38.1 | 58.42 | 27 |
| 387072 | 2 | 47.5 | 50.8 | 72.72 | 27 |
| 387073 | 2.5 | 60.2 | 63.5 | 85.42 | 27 |
| 387074 | 3 | 72.9 | 76.2 | 98.12 | 27 |
| 387075 | 4 | 97.6 | 101.6 | 123.52 | 27 |
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
