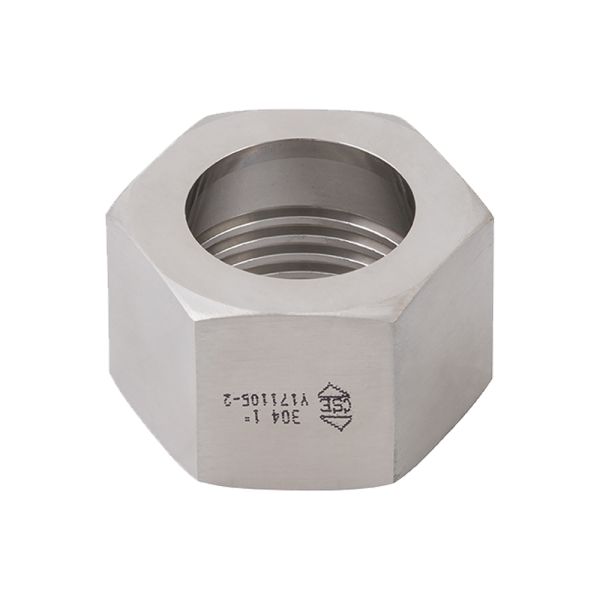

Hex Nut

Loading...
Useful Information

Key Features / Tech Specs & Dimensions:

  • Material: Stainless Steel
  • Manufactured to DIN 316
  • Sizes 1" - 4"

IDF Hex Nut - Stainless Steel Hygienic Fittings

Product Code Nominal Size (inch) ØA B C ØD L
387040 1 30.5 34.34 46 48 30
387041 1.5 43.5 47.86 60 64 30
387042 2 57 61.37 75 77 30
387043 2.5 70.7 74.88 90 91 30
387044 3 83.3 84.4 106 106 30
387045 4 112 115.41 135 135 34.9



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
387040SS Hygienic IDF Hex Nut 1" £22.24 50%
£11.12
387041SS Hygienic IDF Hex Nut 1 1/2" £22.60 50%
£11.30
387042SS Hygienic IDF Hex Nut 2" £32.04 50%
£16.02
387043SS Hygienic IDF Hex Nut 2 1/2" £35.48 50%
£17.74
387044SS Hygienic IDF Hex Nut 3" £44.60 50%
£22.30
387045SS Hygienic IDF Hex Nut 4" £69.72 50%
£34.86
