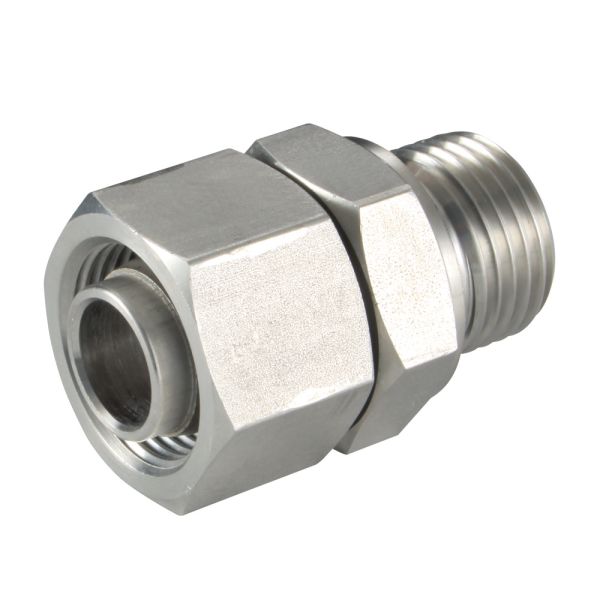

S Series Metric Parallel Captive Seal
Useful Information
Key Features / Tech Specs & Dimensions:
- Material: stainless steel - 316
- Metric Parallel male thread
- Manufactured to DIN 2353
- Captive seal Viton
- S series (heavy)
| Product Code | Outer Diameter (mm) | G Thread (inch) | G1 Thread (inch) | L1 (mm) | L2 (mm) | i (mm) | SW1 (mm) | SW3 (mm) | Max. Pressure (bar) |
| 360966 | 6 | M12 x 1.5 | M14 x 1.5 | 39.5 | 19 | 12 | 17 | 17 | 630 |
| 360967 | 8 | M14 x 1.5 | M16 x 1.5 | 40.5 | 19.5 | 12 | 19 | 19 | 630 |
| 360968 | 10 | M16 x 1.5 | M18 x 1.5 | 44 | 21.5 | 12 | 22 | 22 | 630 |
| 360969 | 12 | M18 x 1.5 | M20 x 1.5 | 46 | 21.5 | 12 | 24 | 24 | 630 |
| 360970 | 14 | M20 x 1.5 | M22 x 1.5 | 50 | 23.5 | 14 | 27 | 27 | 630 |
| 360971 | 16 | M22 x 1.5 | M24 x 1.5 | 51 | 24 | 14 | 27 | 30 | 400 |
| 360972 | 20 | M27 x 2 | M30 x 2 | 59 | 28 | 16 | 32 | 36 | 400 |
| 360974 | 30 | M42 x 2 | M42 x 2 | 71 | 34 | 20 | 50 | 50 | 400 |
| 360975 | 38 | M48 x 2 | M52 x 2 | 83.5 | 40 | 22 | 55 | 60 | 315 |
