Useful Information

Key Features / Tech Specs & Dimensions:

  • Material: stainless steel - 316
  • Manufactured to DIN 2353
  • Metric male thread
  • Operating pressure up 400 bar
  • Supplied with Viton sealing ring

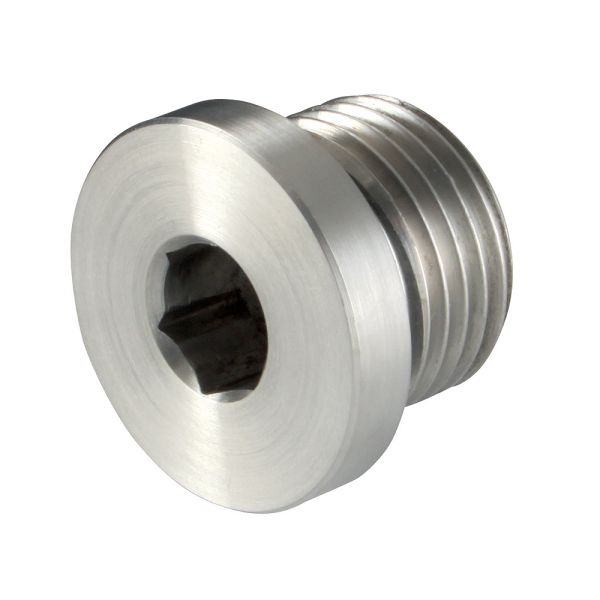

Blanking Plug Threaded

Product Code Thread (mm) D (mm) L (mm) i (mm) SW (mm) Max. Pressure (bar)
361861 M10 x 1 14 12 8 5 400
361862 M12 x 1.5 17 17 12 6 400
361863 M14 x 1.5 19 17 12 6 400
361864 M16 x 1.5 22 17 12 8 400
361865 M18 x 1.5 24 17 12 8 400
361866 M20 x 1.5 26 19 14 10 400
361867 M22 x 1.5 27 19 14 10 400
361868 M26 x 1.5 32 21 16 12 400
361869 M27 x 2 32 21 16 12 400
361870 M33 x 2 40 22.5 16 17 400
361871 M42 x 2 50 22.5 16 22 315
361872 M48 x 2 55 22.5 16 24 315



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
361861SS Blanking Plug Male Threaded DIN 2353 M10 x 1mm £20.56 50%
£10.28
361862SS Blanking Plug Male Threaded DIN 2353 M12 x 1.5mm £22.24 50%
£11.12
361863SS Blanking Plug Male Threaded DIN 2353 M14 x 1.5mm £20.76 50%
£10.38
361864SS Blanking Plug Male Threaded DIN 2353 M16 x 1.5mm £25.48 50%
£12.74
361865SS Blanking Plug Male Threaded DIN 2353 M18 x 1.5mm £30.44 50%
£15.22
361866SS Blanking Plug Male Threaded DIN 2353 M20 x 1.5mm £44.84 50%
£22.42
361867SS Blanking Plug Male Threaded DIN 2353 M22 x 1.5mm £39.56 50%
£19.78
361868SS Blanking Plug Male Threaded DIN 2353 M26 x 1.5mm £42.60 50%
£21.30
361869SS Blanking Plug Male Threaded DIN 2353 M27 x 2mm £49.52 50%
£24.76
361870SS Blanking Plug Male Threaded DIN 2353 M33 x 2mm £110.60 50%
£55.30
361871SS Blanking Plug Male Threaded DIN 2353 M42 x 2mm £142.56 50%
£71.28
361872SS Blanking Plug Male Threaded DIN 2353 M48 x 2mm £268.48 50%
£134.24
