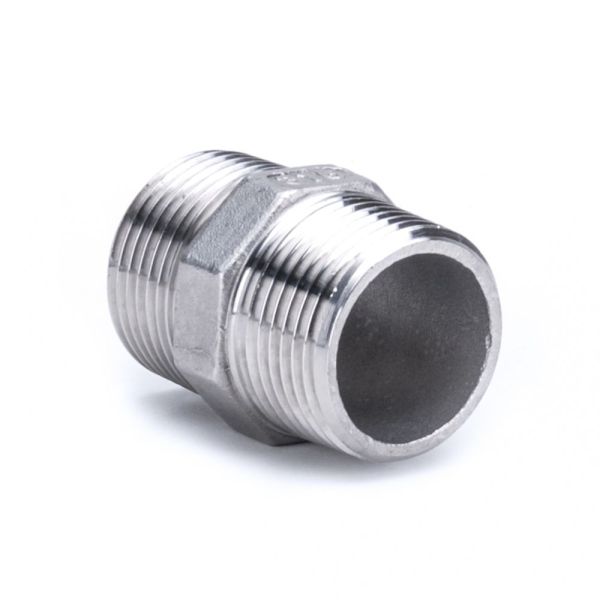

Hexagon Nipple
Useful Information
Key Features / Tech Specs:
- Material: stainless steel - CF8M (316)
- Conforms to ISO 4144 standard
- Thread: ANSI B1.20.1 NPT
- Operating temperature range of -20°C to 220°C
- NPT is not compatible with BSP Threaded fittings
Technical Info:
| Nominal Diameter (inch) | A (mm) | B (mm) | C (mm) | Weight (kg) |
| 1/4 | 32 | 13.4 | 5.2 | 0.021 |
| 3/8 | 36.7 | 14.8 | 7.1 | 0.035 |
| 1/2 | 41.7 | 16.4 | 8.8 | 0.050 |
| 3/4 | 45 | 18.5 | 8 | 0.070 |
| 1 | 48.1 | 18.6 | 10.9 | 0.119 |
| 1 1/4 | 53.4 | 20.6 | 12.2 | 0.180 |
| 1 1/2 | 55.5 | 21.5 | 12.5 | 0.217 |
| 2 | 64.2 | 25.6 | 13 | 0.328 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
