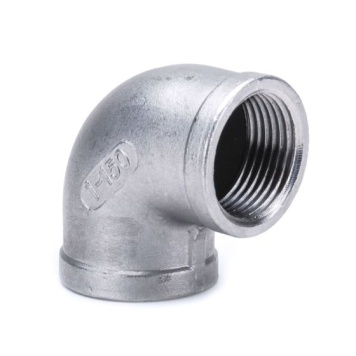

150lb 316 Stainless Steel Pipe Fittings NPT Thread
Key Features / Tech Specs:
- Material: stainless steel - CF8M (316)
- 150lb NPT threaded fittings
- Conform to ISO 4144 standard
- Manufactured by investment cast or from welded tube
- Thread: ANSI B1.20.1 NPT
- Operating temperature range of -20°C to 220°C
- NPT is not compatible with BSP Threaded fittings
Technical Info:
Temperature / Pressure Ratings
| Temperature (°C) | Non-Shock Maximum Pressure (bar) |
| -20 to 40 | 20 |
| 100 | 16.5 |
| 150 | 15 |
| 200 | 14 |
| -220 | 13.5 |
Please note:
Pressure for intermediate temperatures may be determined by interpolation.
Indicated temperatures are those of internal fluid.
Piping loads, stresses and moments are not taken into account.
Useful Info:
These 150lb Class fittings are all NPT threaded (female are parallel, male are tapered) and are designed for use in low-pressure applications.
These stainless steel fittings are suitable for use in applications such as petrochemical, water distribution, paper production, marine, and food and beverage.
We also supply non-threaded stainless steel pipe for use with these fittings.
