Spigots EPDM
Useful Information
Key Features / Tech Specs / Dimensions:
- Material: Polypropylene

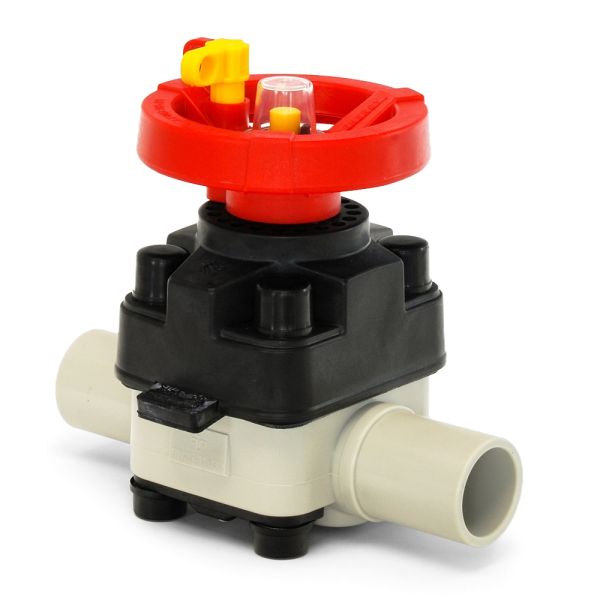

- Diaphragm valve spigot with EPDM seal
- Pressure rated to 10 bar
- Temperature range 0°C to 80°C
- Manufactured to DIN 3442
- Available in sizes from 20mm to 63mm
Â
Â
| Product Code | d (mm) | DN (mm) | Kv 100 I/m Δ = 1 bar | M (mm) | H (mm) | B (mm) | F (mm) | Lift (mm) | K (mm) | L (mm) | t (mm) | Pressure rating (bar) |
| 355599 | 20 | 15 | 72 | 17 | 100 | 86 | 25 | 9 | M6 | 124 | 29 | 10 |
| 355600 | 25 | 20 | 93 | 17 | 100 | 86 | 25 | 9 | M6 | 144 | 36 | 10 |
| 355601 | 32 | 25 | 221 | 20 | 107 | 86 | 25 | 11 | M6 | 154 | 36 | 10 |
| 355602 | 40 | 32 | 450 | 32 | 144 | 136 | 44 | 22 | M8 | 174 | 39 | 10 |
| 355603 | 50 | 40 | 500 | 32 | 144 | 136 | 44 | 22 | M8 | 194 | 46 | 10 |
| 355604 | 63 | 50 | 875 | 39 | 170 | 136 | 44 | 28 | M8 | 224 | 46 | 10 |
Â
Useful Info:
Suitable for controlling flow of fluids in various applications.
Can connect to a pph pipe or fitting with female ends.
Applications of use with these pph diaphragm valves include acid transportation, alkali transportation, chemical processing, industrial waste treatment, use in pharmaceutical industries, biotechnology industries, hospital and laboratory applications, water treatment, brewing and distilling electronics, food industries and nuclear industries.
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
