VXE DU Ball Valve FPM

Loading...
Useful Information

Key Features / Tech Specs & Dimensions:

  • Material: chlorinated polyvinyl chloride
  • Seal material: FPM
  • VXE easyfit double union ball fpm
  • Maximum working pressure: 16 bar at 20°C
  • Female ends for solvent welding
  • Available in sizes from 16mm to 63mm

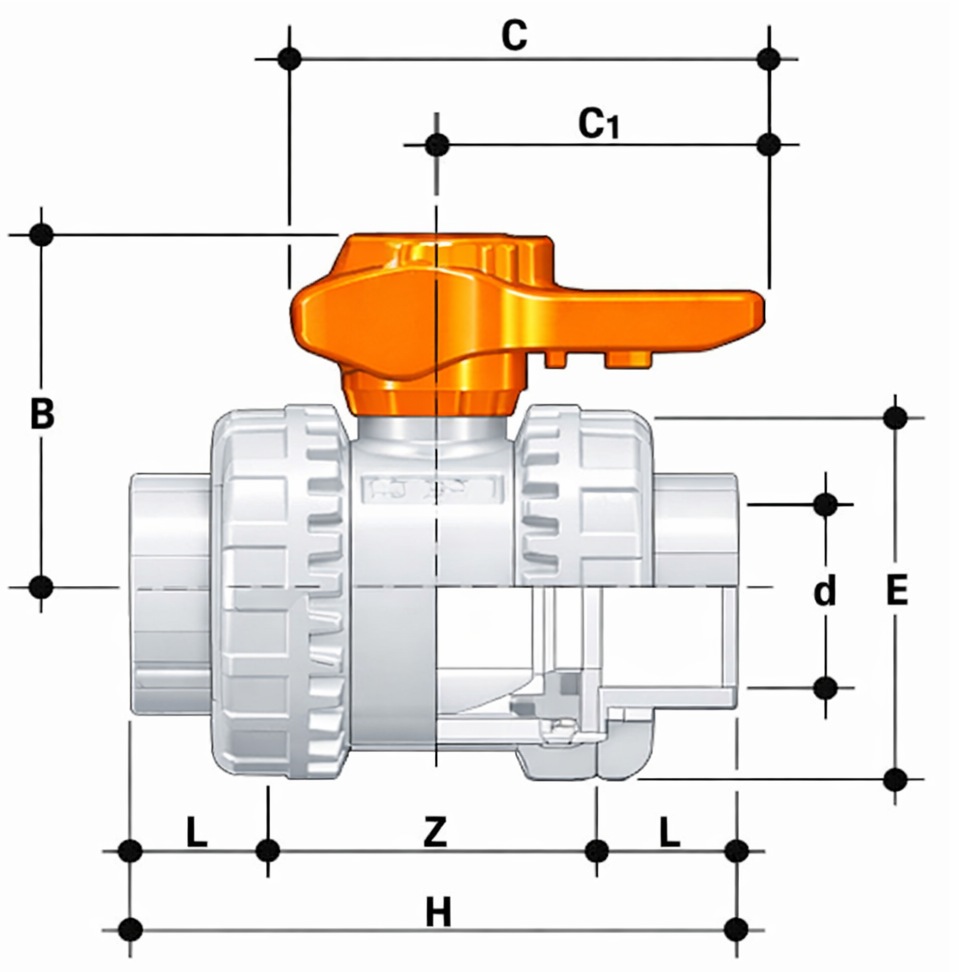

PVCc double union ball valve fpm diagram

Product Code d (mm) DN L (mm) Z (mm) H (mm) E (mm) B (mm) C (mm) C1 (mm) Pressure Rating (bar)
354795 16 10 14 54 82 54 49 64 20 16
354796 20 15 16 50 82 54 49 64 20 16
354797 25 20 19 53 91 63 62 78 23 16
354798 32 25 22 59 103 72 71 87 27 16
354799 40 32 26 68 120 85 82 102 30 16
354800 50 40 31 77 139 100 92 109 33 16
354801 63 50 38 98 174 118 110 133 39 16



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

Useful Info:

These PVCc double union ball valves are ideal for use in industrial and general purpose applications to transport demineralised water, acids, alkalis, industrial waste treatment, chemical processing, soaps, paper, pulps and effluent.

It is true union designed making it easy to install and service through the piping system.

Manufactured to withstand leakage under tough conditions with a threaded seat providing improved seal.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
354795DP PVCc VXE Easyfit Double Union Ball Valve FPM 16mm £128.67 30%
£90.07
354796DP PVCc VXE Easyfit Double Union Ball Valve FPM 20mm £129.29 30%
£90.50
354797DP PVCc VXE Easyfit Double Union Ball Valve FPM 25mm £170.17 30%
£119.12
354798DP PVCc VXE Easyfit Double Union Ball Valve FPM 32mm £200.60 30%
£140.42
354799DP PVCc VXE Easyfit Double Union Ball Valve FPM 40mm £204.32 30%
£143.02
354800DP PVCc VXE Easyfit Double Union Ball Valve FPM 50mm £280.45 30%
£196.32
354801DP PVCc VXE Easyfit Double Union Ball Valve FPM 63mm £382.59 30%
£267.81
