Butterfly Valve FPM
Useful Information
Key Features / Tech Specs / Dimensions:
- Material: polypropylene
- Butterfly valve FPM seal
- Pressure rated to: 90mm - 140mm 10 bar, and 160mm - 225mm 6 bar
- Manufactured to DIN 3442
- Enclosed stainless steel shaft to avoid contact with corrosive fluids
- Available in sizes from 90mm to 225mm
Â
Â

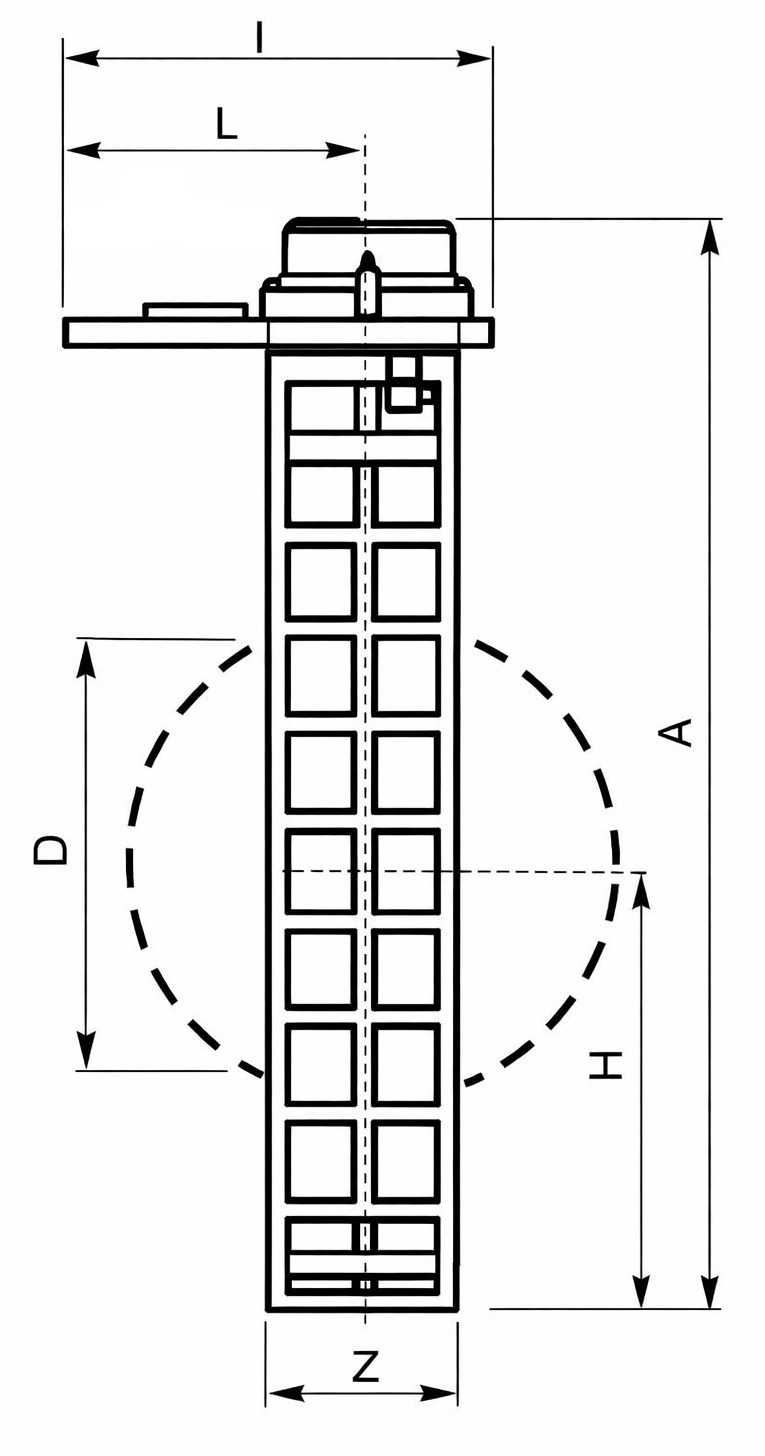

| Product Code | d (mm) | DN (mm) | Kv 100 I/m Δ = 1 bar | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | J (mm) | K (mm) | L (mm) | Z (mm) | Pressure rating (bar) |
| 355616 | 90 | 80 | 3000 | 260 | 270 | 130 | 75 | 89 | 10 | 9 | 10 | 113 | 153-160 | 19 | 78 | 49 | 10 |
| 355617 | 110 | 100 | 6500 | 289 | 270 | 150 | 92 | 87 | 10 | 11 | 11 | 113 | 180-191 | 19 | 78 | 56 | 10 |
| 355618 | 140 | 125 | 11500 | 324 | 270 | 185 | 117 | 12 | 10 | 11 | 12 | 113 | 210-216 | 22 | 78 | 64 | 10 |
| 355619 | 160 | 150 | 16600 | 350 | 380 | 210 | 134 | 16 | 16 | 11 | 14 | 141 | 240 | 22 | 94 | 70 | 6 |
| 355620 | 225 | 200 | 39600 | 425 | 380 | 265 | 201 | 16 | 22 | 11 | 17 | 141 | 295-298 | 22 | 94 | 71 | 6 |
Â
Useful Info:
These pph butterfly valves are ideal for use in various applications in a pipeline to regulate flow.
Applications of use with these pph butterfly valves include acid transportation, alkali transportation, chemical processing, industrial waste treatment, use in pharmaceutical industries, biotechnology industries, hospital and laboratory applications, water treatment, brewing and distilling electronics, food industries and nuclear industries.
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
