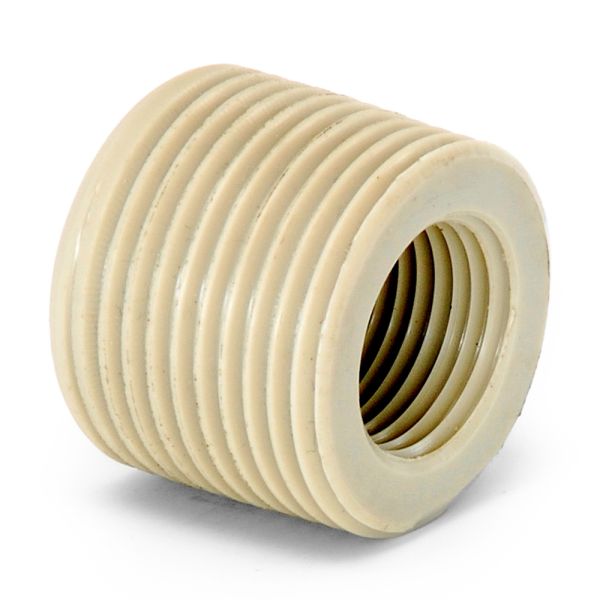

Reducing Bush

Skip to the end of the images gallery

Skip to the beginning of the images gallery

More Info

Useful Information

Key Features / Tech Specs & Dimensions:

Material: polypropylene
Reducing bush threaded fitting
Pressure rated to 6 bar
Manufactured to DIN 16962
Available in sizes from 3/4" x 1/2" to 2" x 1 1/2"

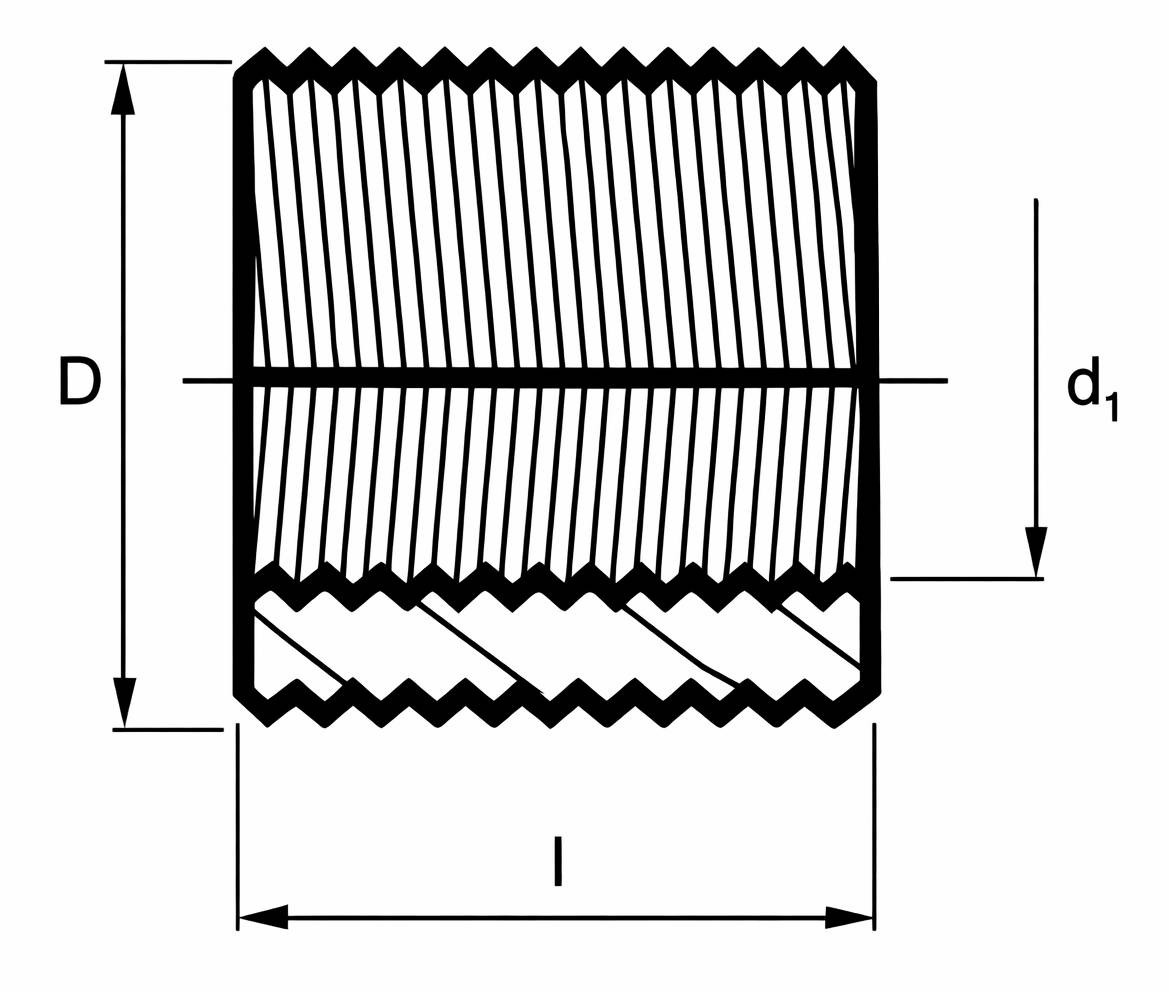

PPh reducing bush threaded diagram

Product Code	d x d₁(inch)	I (mm)	Pressure Rating (bar)
355880	¾ x ½	24	6
355881	1 x ½	27	6
355882	1 x ¾	27	6
355883	1 ½ x 1	30	6
355884	2 x 1	34	6
355885	2 x 1 ½	34	6

IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

Useful Info:

These threaded pph reducing bush are used to convert from a larger threaded fitting to a smaller fitting.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
355880	PP Reducing Bush Threaded 3/4" x 1/2"	£22.20	20%	£17.76
355881	PP Reducing Bush Threaded 1" x 1/2"	£26.74	20%	£21.39
355882	PP Reducing Bush Threaded 1" x 3/4"	£27.73	20%	£22.18
355883	PP Reducing Bush Threaded 1 1/2" x 1"	£33.22	20%	£26.58
355884	PP Reducing Bush Threaded 2" x 1"	£58.75	20%	£47.00
355885	PP Reducing Bush Threaded 2" x 1 1/2"	£58.75	20%	£47.00
