Tee 90
Useful Information
Key Features / Tech Specs & Dimensions:
- Material: polypropylene
- Tee 90 plain fitting
- Pressure rated to 10 bar
- Manufactured to DIN 16962
- Available in sizes from 20mm to 160mm

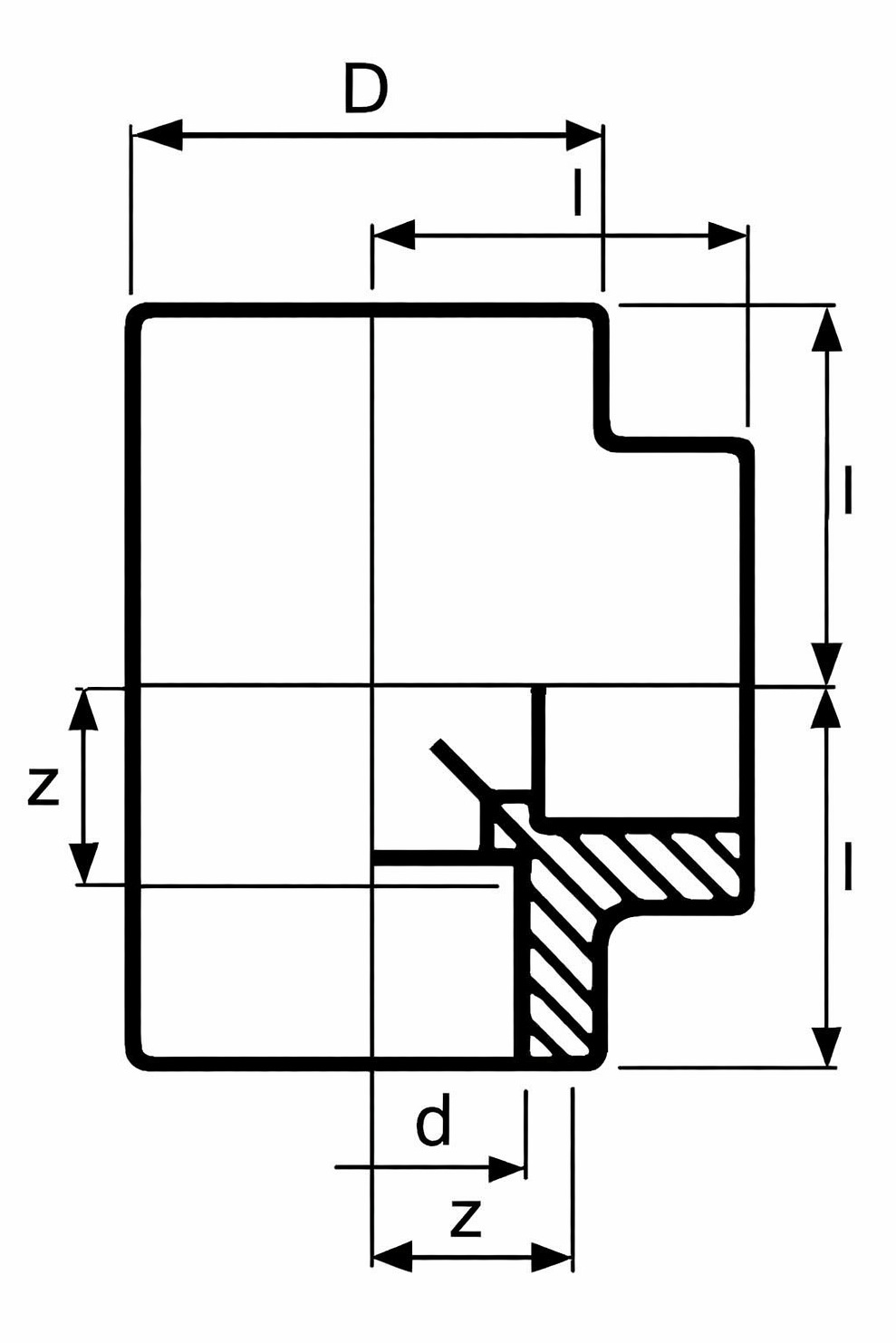

| Product Code | d (mm) | D (mm) | I (mm) | I1(mm) | Pressure Rating (bar) |
| 355914 | 20 | 27 | 29 | 15 | 10 |
| 355915 | 25 | 34 | 34 | 18 | 10 |
| 355916 | 32 | 41 | 41 | 23 | 10 |
| 355917 | 40 | 52 | 45 | 24 | 10 |
| 355918 | 50 | 61 | 52 | 29 | 10 |
| 355919 | 63 | 77 | 63 | 36 | 10 |
| 355920 | 75 | 92 | 73 | 42 | 10 |
| 355921 | 90 | 110 | 86 | 51 | 10 |
| 355922 | 110 | 134 | 105 | 64 | 10 |
| 355923 | 160 | 193 | 193 | 147 | 10 |
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
Useful Info:
These pph tee 90 fittings are used to join together three pieces of pph pipe of the same dimensions at an angle of 90°.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
