Bend 90
Useful Information
Key Features / Tech Specs & Dimensions:
- Material: polypropylene
- Bend 90 plain fitting
- Pressure rated to 10 bar
- Manufactured to DIN 16962
- Available in sizes from 20mm to 63mm

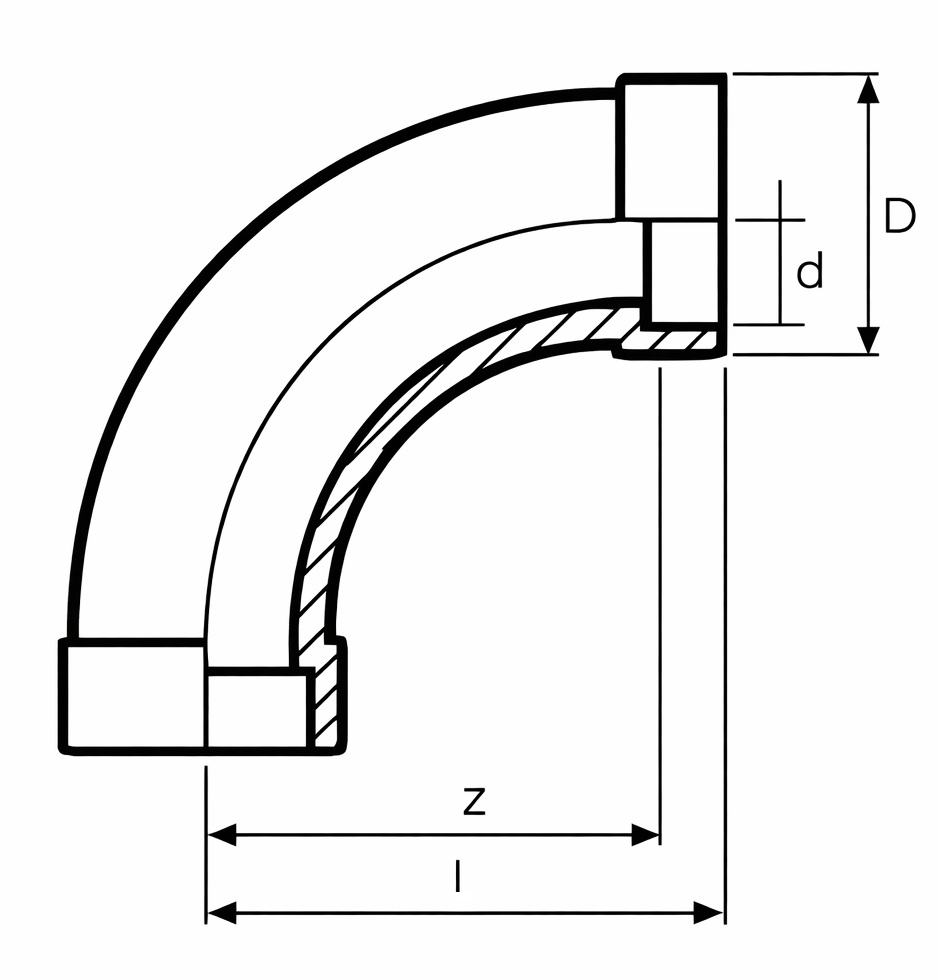

| Product Code | d (mm) | D (mm) | I (mm) | Z (mm) | Pressure Rating (bar) |
| 355771 | 20 | 35 | 74 | 59 | 10 |
| 355772 | 25 | 38 | 60 | 44 | 10 |
| 355773 | 32 | 45 | 87 | 68 | 10 |
| 355774 | 40 | 51 | 101 | 81 | 10 |
| 355775 | 50 | 60 | 93 | 70 | 10 |
| 355776 | 63 | 74 | 106 | 79 | 10 |
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
Useful Info:
Used to join together two pieces of pph pipe of the same dimensions at an angle of 90°
