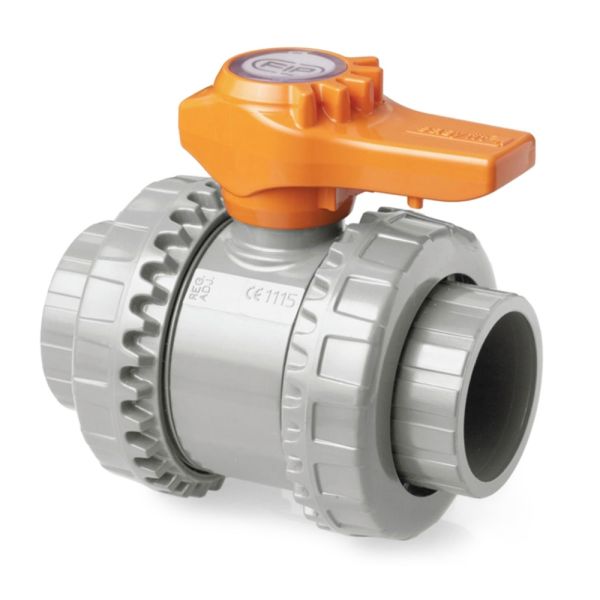

VXE DU Ball Valve FPM
Useful Information
Key Features / Tech Specs & Dimensions:
- Material: chlorinated polyvinyl chloride
- Seal material: FPM
- VXE easyfit double union ball fpm
- Maximum working pressure: 16 bar at 20°C
- Female ends for solvent welding
- Available in sizes from 16mm to 63mm
| Product Code | d (mm) | DN | L (mm) | Z (mm) | H (mm) | E (mm) | B (mm) | C (mm) | C1 (mm) | Pressure Rating (bar) |
| 354795 | 16 | 10 | 14 | 54 | 82 | 54 | 49 | 64 | 20 | 16 |
| 354796 | 20 | 15 | 16 | 50 | 82 | 54 | 49 | 64 | 20 | 16 |
| 354797 | 25 | 20 | 19 | 53 | 91 | 63 | 62 | 78 | 23 | 16 |
| 354798 | 32 | 25 | 22 | 59 | 103 | 72 | 71 | 87 | 27 | 16 |
| 354799 | 40 | 32 | 26 | 68 | 120 | 85 | 82 | 102 | 30 | 16 |
| 354800 | 50 | 40 | 31 | 77 | 139 | 100 | 92 | 109 | 33 | 16 |
| 354801 | 63 | 50 | 38 | 98 | 174 | 118 | 110 | 133 | 39 | 16 |
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
Useful Info:
These PVCc double union ball valves are ideal for use in industrial and general purpose applications to transport demineralised water, acids, alkalis, industrial waste treatment, chemical processing, soaps, paper, pulps and effluent.
It is true union designed making it easy to install and service through the piping system.
Manufactured to withstand leakage under tough conditions with a threaded seat providing improved seal.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
