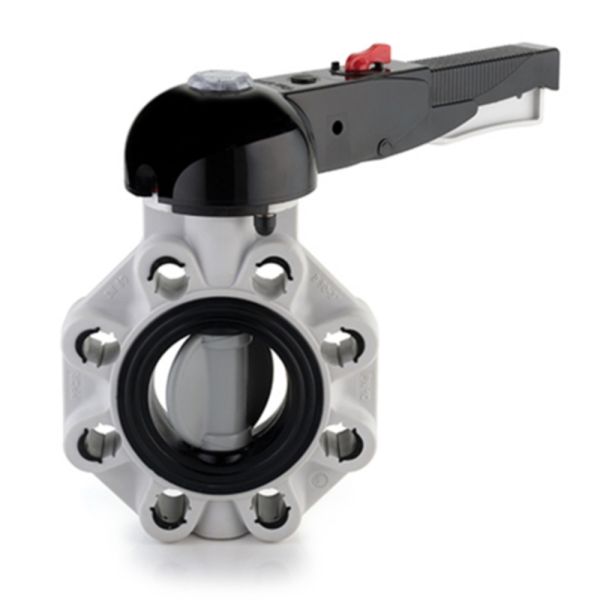

Butterfly Lever Op Valve FPM
Useful Information
Key Features / Tech Specs & Dimensions:
- Disc Material: chlorinated polyvinyl chloride
- Body Material: GR-PP Glass Reinforced Polypropylene (plastic resin)
- Seal material: FPM
- PVCc FK butterfly valve
- Maximum working pressure: 16 and 10 bar at 20°C
- Available in sizes from 50mm to 160mm
| Product Code | d (mm) | DN (mm) | B2 (mm) | B3 (mm) | H (mm) | z (mm) | Amin (mm) | Amax (mm) | F (mm) | U (mm) | C (mm) | C1 (mm) | Pressure Rating (bar) |
| 354621 | 50 | 40 | 60 | 137 | 132 | 33 | 99 | 109 | 19 | 4 | 175 | 100 | 16 |
| 354625 | 110 | 100 | 107 | 192 | 211 | 56 | 165 | 190 | 19 | 8 | 272 | 110 | 10 |
| 354626 | 160 | 150 | 134 | 225 | 268 | 70 | 230 | 242 | 23 | 8 | 330 | 110 | 10 |
Â
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
Useful Info:
These DP PVCc fk butterfly valves are ideal for use in industrial and general purpose applications that require high performance and reliability.
Used for on/off and control operation, lever operated and installed with a handle locking device to regulate flow.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
