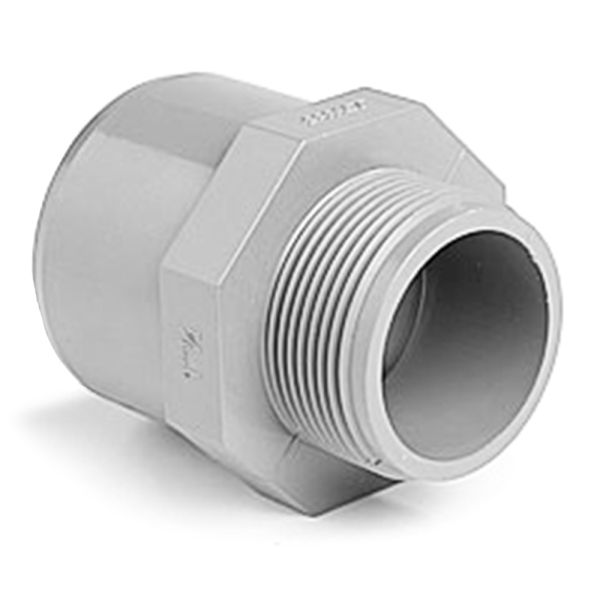

Nipple Plain / M BSP

Loading...
Useful Information

Key Features / Tech Specs & Dimensions:

  • Material: polyvinyl chloride resin and chlorine
  • Nipple plain/male bsp thread fitting
  • Pressure rated to 16 bar
  • Manufactured to DIN 8063
  • Available in sizes from 16mm x 20mm 38" to 63mm x 75mm x 2"

dp nipple plain male bsp thread diagram

Product Code A (mm) B (mm) Z1 (mm) Pressure Rating (bar)
351130 22 34 20 16
351131 28 41 25 16
351132 34 46 27 16
351133 42 52.5 30.5 16
351134 52 61 35 16
351135 65 66 35 16
351136 75 79 41 16



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

Useful Info:

These adaptors are used to add a female thread connection to a Corzan CPVC pipe

The plain end should be fixed to the pipe using PVCc solvent cement along with PVCc Eco-Cleaner

The threaded male end will connect to a standard female bsp threaded fitting.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
Code Product Name List Price You Save You Pay Quantity
351130 DP PVCc Nipple Plain / Male BSP Thread 16mm x 20mm x 3/8" £11.26 30%
You Pay:  £7.88
351131 DP PVCc Nipple Plain / Male BSP Thread 20mm x 25mm x 1/2" £11.26 30%
You Pay:  £7.88
351132 DP PVCc Nipple Plain / Male BSP Thread 25mm x 32mm x 3/4" £13.05 30%
You Pay:  £9.13
351133 DP PVCc Nipple Plain / Male BSP Thread 32mm x 40mm x 1" £14.84 30%
You Pay:  £10.38
351134 DP PVCc Nipple Plain / Male BSP Thread 40mm x 50mm x 1 1/4" £19.04 30%
You Pay:  £13.33
351135 DP PVCc Nipple Plain / Male BSP Thread 50mm x 63mm x 1 1/2" £27.70 30%
You Pay:  £19.39
351136 DP PVCc Nipple Plain / Male BSP Thread 63mm x 75mm x 2" £38.29 30%
You Pay:  £26.80
