Reducing Bush
Useful Information
Key Features / Tech Specs & Dimensions:
- Material: polyvinyl chloride resin and chlorine

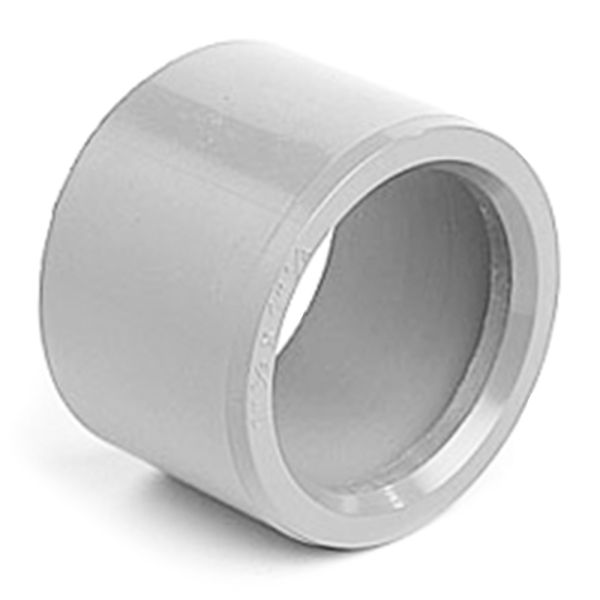

- Plain reducing bush fitting
- Pressure rated to 16 bar (up to 110mm), 160mm rated to 10 bar
- Manufactured to DIN 8063
- Available in sizes from 20mm x 16mm to 160mm x 110mm
| Product Code | B (mm) | Z1 (mm) | Pressure Rating (bar) |
| 351039 | 16 | 2 | 16 |
| 351040 | 19 | 3 | 16 |
| 351041 | 22 | 6 | 16 |
| 351042 | 22 | 3 | 16 |
| 351043 | 26 | 10 | 16 |
| 351044 | 26 | 7 | 16 |
| 351045 | 26 | 4 | 16 |
| 351046 | 31 | 9 | 16 |
| 351047 | 31 | 5 | 16 |
| 351048 | 38 | 16 | 16 |
| 351049 | 38 | 11.5 | 16 |
| 351050 | 38 | 7 | 16 |
| 351051 | 44 | 12 | 16 |
| 351052 | 44 | 6 | 16 |
| 351053 | 51 | 20 | 16 |
| 351054 | 51 | 13 | 16 |
| 351055 | 51 | 7 | 16 |
| 351056 | 61 | 23 | 16 |
| 351057 | 61 | 17 | 16 |
| 351058 | 61 | 9 | 16 |
| 351059 | 86 | 25 | 10 |
Â
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
Useful Info:
These dp pvcc reducing bush plain are used to reduce down one side of corzan cpvc pipe fitting, a plain dp pvcc reducing bush can be glued inside the fitting socket with PVCc solvent cement.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
