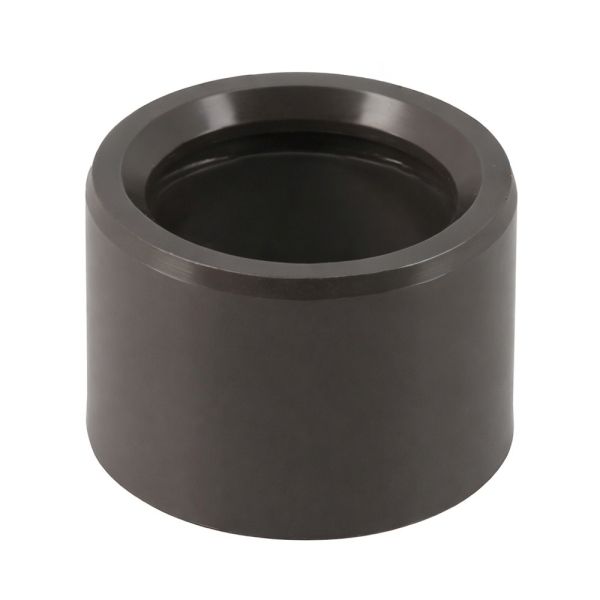

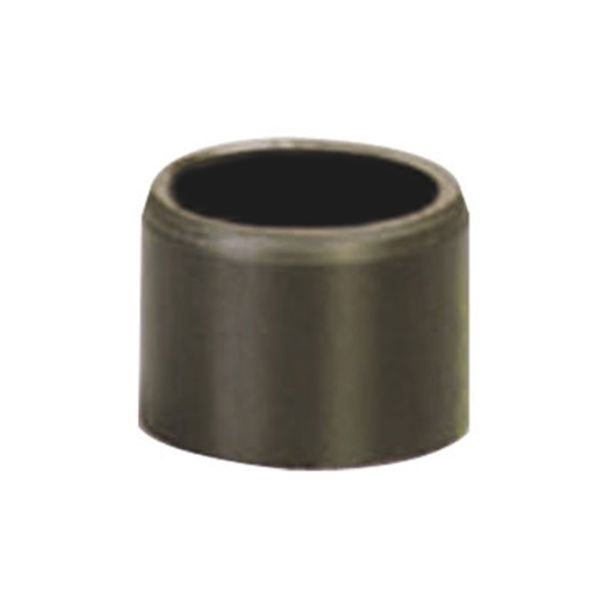

Durapipe HTA Reducing Bush Short Pattern

Loading...
Useful Information

Key Features / Tech Specs:

  • Manufactured by Durapipe
  • Material: chlorinated polyvinyl chloride (CPVC)
  • For use with hot and cold water.
  • Temperature Range: 5°C - 90°C
  • Pressure Rating: Up to 25 bar

Reducing Bush Short.jpg

Product Code D-d (mm) Z (mm) E (mm) L (mm)
354418 25-20 3 17 20
354419 32-25 4.5 19 23.5
354420 40-32 5.5 23 28.5
354421 50-40 6.5 26 32.5
354422 63-50 8 31 39
354423 75-63 7 37.5 44.5
354424 90-75 7.5 44 51.5
354415 110-90 10 52 62
354416 125-110 8 63 71



Working Pressures & Temperatures



  (PN25) 70°C / 10 bar 60°C / 6 bar (PN16) 70°C / 6 bar 60°C / 4 bar
Temperature °C Pressure (bar) Pressure (bar)
5 25 16
20 25 16
40 20 12
60 13 8
70 10 6
80 6 4
90 4 2



Useful Info:

HTA is suitable for the transportation of drinking water.

Its smooth bore prevents limescale build up and is corrosion free.

Lightweight and easy to install.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
354417DP HTA Reducing Bush Short Pattern Plain 20mm x 16mm £2.45 30%
£1.72
354418DP HTA Reducing Bush Short Pattern Plain 25mm x 20mm £3.42 30%
£2.40
354419DP HTA Reducing Bush Short Pattern Plain 32mm x 25mm £4.86 30%
£3.40
354420DP HTA Reducing Bush Short Pattern Plain 40mm x 32mm £6.33 30%
£4.43
354421DP HTA Reducing Bush Short Pattern Plain 50mm x 40mm £9.56 30%
£6.69
354422DP HTA Reducing Bush Short Pattern Plain 63mm x 50mm £13.21 30%
£9.24
354423DP HTA Reducing Bush Short Pattern Plain 75mm x 63mm £19.55 30%
£13.68
354424DP HTA Reducing Bush Short Pattern Plain 90mm x 75mm £28.54 30%
£19.98
354415DP HTA Reducing Bush Short Pattern Plain 110mm x 90mm £60.05 30%
£42.03
354416DP HTA Reducing Bush Short Pattern Plain 125mm x 110mm £96.41 30%
£67.49
354496DP HTA Reducing Bush Short Pattern Plain 125mm x 63mm £106.44 30%
£74.51
354497DP HTA Reducing Bush Short Pattern Plain 125mm x 75mm £106.44 30%
£74.51
354498DP HTA Reducing Bush Short Pattern Plain 160mm x 110mm £129.65 30%
£90.76
354499DP HTA Reducing Bush Short Pattern Plain 160mm x 125mm £143.72 30%
£100.60
