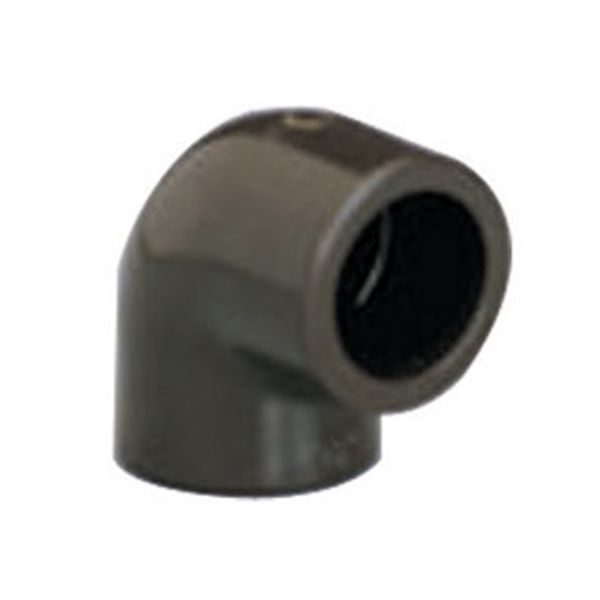

Durapipe HTA Elbow 90°
Useful Information
Key Features / Tech Specs:
- Manufactured by Durapipe
- Material: chlorinated polyvinyl chloride (CPVC)
- For use with hot and cold water.
- Temperature Range: 5°C - 90°C
- Pressure Rating: Up to 25 bar
| Product Code | D (mm) | Z (mm) | E (mm) | A (mm) |
| 354278 | 20 | 11 | 16 | 30 |
| 354279 | 25 | 14 | 19 | 37 |
| 354280 | 32 | 17 | 23 | 44 |
| 354281 | 40 | 21.5 | 27 | 54 |
| 354282 | 50 | 27 | 32 | 65 |
| 354283 | 63 | 31 | 38 | 80 |
| 354284 | 75 | 38 | 44 | 92 |
| 354285 | 90 | 46 | 52 | 112 |
| 354275 | 110 | 57 | 62 | 136 |
| 354276 | 125 | 63.5 | 69 | 147 |
| 354277 | 160 | 81 | 86 | 190 |
Working Pressures & Temperatures
| (PN25) 70°C / 10 bar 60°C / 6 bar | (PN16) 70°C / 6 bar 60°C / 4 bar | |
| Temperature °C | Pressure (bar) | Pressure (bar) |
| 5 | 25 | 16 |
| 20 | 25 | 16 |
| 40 | 20 | 12 |
| 60 | 13 | 8 |
| 70 | 10 | 6 |
| 80 | 6 | 4 |
| 90 | 4 | 2 |
Useful Info:
HTA is suitable for the transportation of drinking water.
Its smooth bore prevents limescale build up and is corrosion free.
Lightweight and easy to install.
