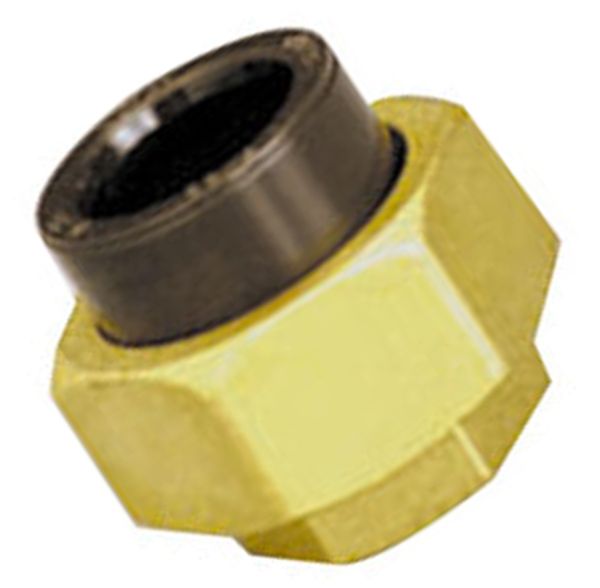

Durapipe HTA 3-Piece Unions F
Useful Information
Key Features / Tech Specs:
- Manufactured by Durapipe
- Material: chlorinated polyvinyl chloride (CPVC)
- For use with hot and cold water.
- Temperature Range: 5°C - 90°C
- Pressure Rating: Up to 25 bar
| Product Code | D-G (mm x inch) | Z (mm) | E (mm) | E1 (mm) | G1 (inch) | A1 (mm) | A2 (mm) | L (mm) |
| 354265 | 20-1/2" | 8 | 18 | 14 | 1" | 36 | 27 | 40 |
| 354266 | 25-3/4" | 9 | 19 | 15 | 1 1/4" | 45 | 32 | 43 |
| 354267 | 32-1" | 11 | 23.5 | 16 | 1 1/2" | 52 | 38 | 50.5 |
| 354268 | 40-1 1/4" | 12 | 27 | 20 | 2" | 66 | 47 | 59 |
| 354269 | 50-1 1/2" | 13 | 32 | 18 | 2 1/4" | 72 | 53 | 63 |
| 354270 | 63-2" | 12 | 38 | 22 | 2 1/2" | 89 | 65 | 72 |
Working Pressures & Temperatures
| (PN25) 70°C / 10 bar 60°C / 6 bar | (PN16) 70°C / 6 bar 60°C / 4 bar | |
| Temperature °C | Pressure (bar) | Pressure (bar) |
| 5 | 25 | 16 |
| 20 | 25 | 16 |
| 40 | 20 | 12 |
| 60 | 13 | 8 |
| 70 | 10 | 6 |
| 80 | 6 | 4 |
| 90 | 4 | 2 |
Useful Info:
HTA is suitable for the transportation of drinking water.
Its smooth bore prevents limescale build up and is corrosion free.
Lightweight and easy to install.
