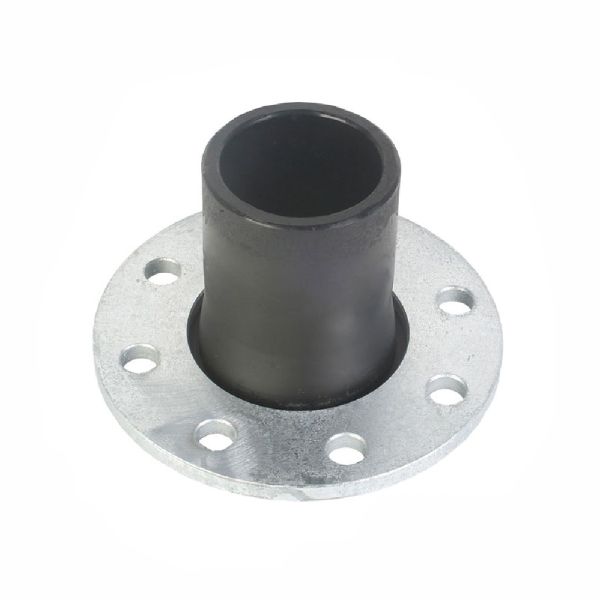

Durapipe PLX SDR11 PE Stub Flange Assembly
Useful Information
Key Features / Tech Specs:
- Material: Polyethylene
- Sizes available: 50mm to 110mm
- Pressure rated to 10 bar
- Zinc plated mild steel backing ring
| Product Code | Outer Diameter (mm) | L (mm) | l1 (mm) | l2 (mm) | l3 (mm) | d1 (mm) | d2 (mm) |
| 383368 | 50 | 90 | 12 | 8 | 62 | 88 | 110 |
| 383369 | 63 | 106 | 14 | 8 | 70 | 102 | 124 |
| 383370 | 90 | 140 | 17 | 8 | 100 | 138 | 160 |
| 383371 | 110 | 160 | 18 | 8 | 113 | 158 | 180 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
