S Series Metric M Threaded
Useful Information

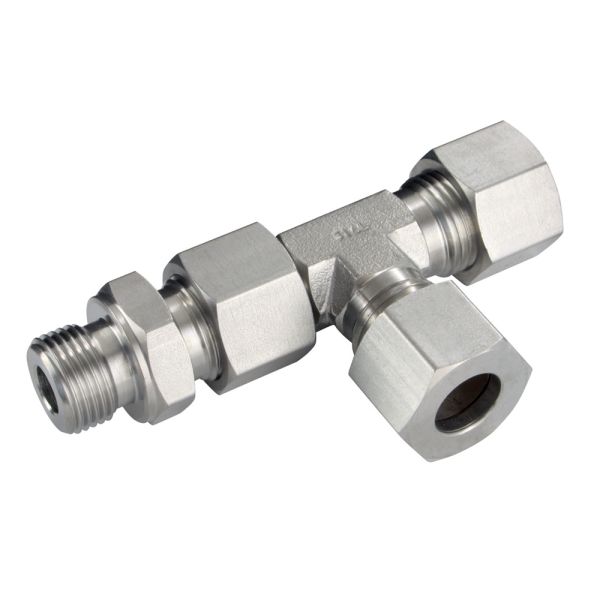

Key Features / Tech Specs & Dimensions:
- Material: stainless steel - 316
- Manufactured to DIN 2353
- Metric male thread
- S series (heavy)
| Product Code | Outer Diameter (mm) | Thread (mm) | L1 (mm) | L2 (mm) | L3 (mm) | L5 (mm) | i (mm) | SW1 (mm) | SW2 (mm) | SW3 (mm) | Max. Pressure (bar) |
| 361118 | 6 | M12 x 1.5 | 31 | 16 | 40 | 27 | 12 | 17 | 12 | 17 | 630 |
| 361119 | 8 | M14 x 1.5 | 32 | 17 | 42.5 | 27.5 | 12 | 19 | 14 | 19 | 630 |
| 361120 | 10 | M16 x 1.5 | 34 | 17.5 | 45 | 30 | 12 | 22 | 17 | 22 | 630 |
| 361121 | 12 | M18 x 1.5 | 38 | 21.5 | 48 | 31 | 12 | 24 | 17 | 24 | 630 |
| 361122 | 14 | M20 x 1.5 | 40 | 22 | 54 | 35 | 14 | 27 | 19 | 27 | 630 |
| 361123 | 16 | M22 x 1.5 | 43 | 24.5 | 55 | 36.5 | 14 | 27 | 24 | 30 | 400 |
| 361124 | 20 | M27 x 2 | 48 | 26.5 | 65 | 44.5 | 16 | 32 | 27 | 36 | 400 |
| 361125 | 25 | M33 x 2 | 54 | 30 | 73 | 50 | 18 | 41 | 36 | 46 | 400 |
