Check Valve Ball Vertical Plain

Skip to the end of the images gallery

Skip to the beginning of the images gallery

More Info

Useful Information

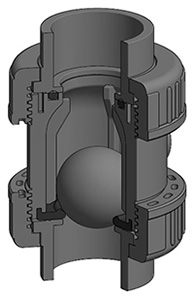

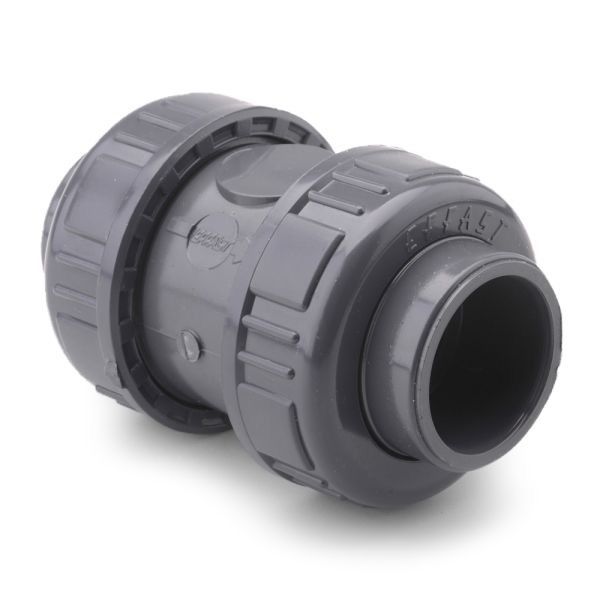

These check valves are manufactured from PVC with a high surface-machined, free moving ball, and plain ends.

These valves are designed to be installed vertically and are available in a range of sizes from 1/2" to 2".

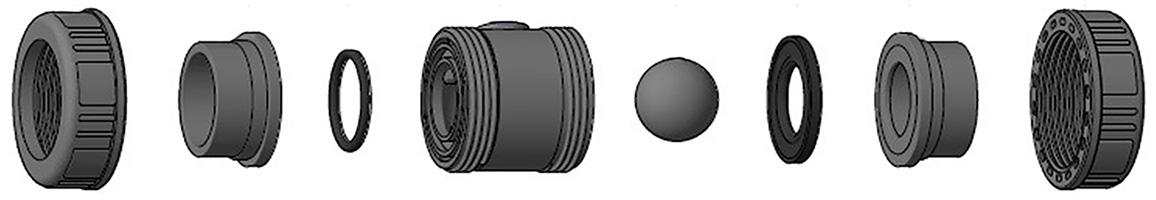

Features an internal cleaning design and a secure seal, even with low pressure usage.

Material	Polyvinyl chloride - unplasticised (PVCu)
Seal Material	EPDM
Temperature	0 - 60°C
Max Pressure	16 bar at 20°C
Connection	Plain union ends

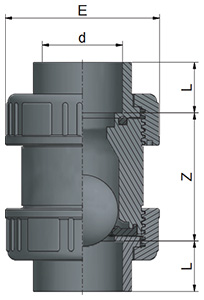

PVCu Check Valve Ball Size Diagram

Product Code	D (Inch)	L (mm)	Z (mm)	E (mm)	Weight (g)
403070	1/2	16	48	49	105
403071	3/4	19	54	60	174
403072	1	22	62	69	256
403073	1 1/4	26	69	80	392
403074	1 1/2	31	81	96	617
403075	2	39	94	116	1079

IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

All text and product images are the intellectual property and copyright of Pipestock Limited

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
403070	PVCu Check Valve Ball EPDM Plain 1/2"	£78.27	65%	£27.39
403071	PVCu Check Valve Ball EPDM Plain 3/4"	£80.22	65%	£28.08
403072	PVCu Check Valve Ball EPDM Plain 1"	£82.79	65%	£28.98
403073	PVCu Check Valve Ball EPDM Plain 1 1/4"	£97.17	65%	£34.01
403074	PVCu Check Valve Ball EPDM Plain 1 1/2"	£141.39	65%	£49.49
403075	PVCu Check Valve Ball EPDM Plain 2"	£187.01	65%	£65.45
