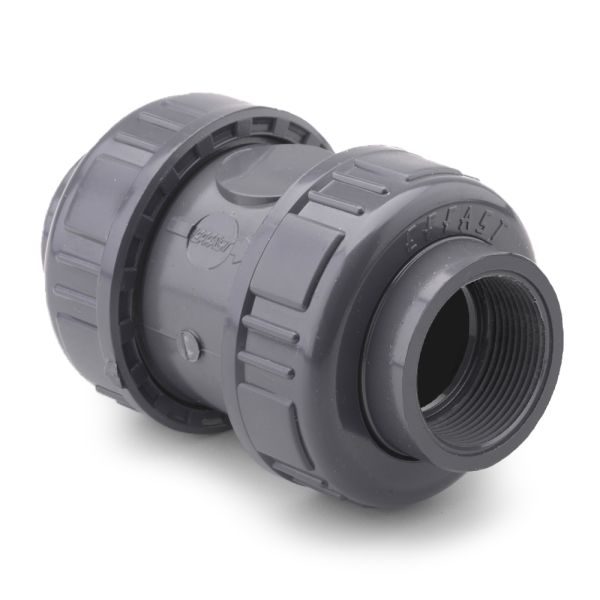

Air Release Valve Threaded

Loading...
Useful Information

Air release valves are designed to discharge air pockets from the pipeline in order to maintain efficient water flow.

They are quick and easy to install and are available in a range of sizes from 1/2" to 4".



Material Polyvinyl chloride - unplasticised (PVCu)
Seal Material EPDM
Temperature 0 - 60°C
Max Pressure up to 2" = 16 bar
2 1/2" and above = 10 bar
Connection BSP female threaded union ends

PVC Air Release Valve

Product Code Nominal Size (inch) L (mm) Z (mm) H (mm) Weight (g)
359988 3/8 16 46 78 110
356318 1/2 16 46 78 110
356319 3/4 19 52 90 180
356320 1 22 60 104 250
356321 1 1/4 24 68 116 380
356322 1 1/2 24 78 126 600
356323 2 28 93 149 1000
356325 3 36 139 212 3000
359989 4 61 160 282 4500



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



All text and product images are the intellectual property and copyright of Pipestock Limited

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
359988PVCu Air Release Valve EPDM Threaded 3/8" £57.27 65%
£20.04
356318PVCu Air Release Valve EPDM Threaded 1/2" £59.87 65%
£20.96
356319PVCu Air Release Valve EPDM Threaded 3/4" £71.56 65%
£25.05
356320PVCu Air Release Valve EPDM Threaded 1" £76.82 65%
£26.89
356321PVCu Air Release Valve EPDM Threaded 1 1/4" £83.83 65%
£29.34
356322PVCu Air Release Valve EPDM Threaded 1 1/2" £123.31 65%
£43.16
356323PVCu Air Release Valve EPDM Threaded 2" £161.75 65%
£56.61
356325PVCu Air Release Valve EPDM Threaded 3" £508.48 65%
£177.97
359989PVCu Air Release Valve EPDM Threaded 4" £1,124.32 65%
£393.51
