PVC Metric Socket Plain x Thread

Loading...
Useful Information

This socket is used to join a piece of metric PVC pipe with a threaded fitting.

The plain end should be bonded to the pipe using PVC solvent cement should be used along with cleaner.

The threaded end will connect to a standard BSP threaded fitting, such as those available in our threaded PVC fitting range.



Material PVCu
Sizes Available 16mm x 3/8" - 110mm x 4"



PVC Socket - metric-plain- thread

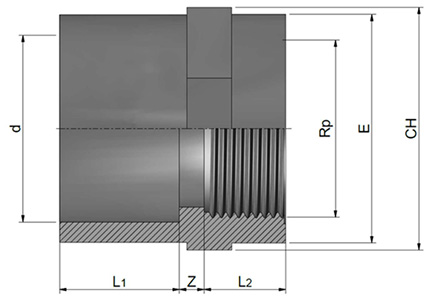

Product Code Nominal Size (mm x Inch) L1 (mm) L2 (mm) Z (mm) E (mm)
356917 16 x 3/8 14 11 6 23
356918 20 x 1/2 17 15 4 28
356919 25 x 3/4 20 16 6 34
356920 32 x 1 20 16 6 34
356921 40 x 1 1/4 28 21 7 51
356922 50 x 1 1/2 32 21 7 61
356923 63 x 2 39 26 7 75
356924 75 2 1/2 44 30 8 89
356925 90 x 3 51 33 9 106
356926 110 x 4 61 39 10 129




Approvals:

BSI Kitemark Approved Product - sold by Pipestock

BSI Kitemark approved

Licence number KM60041



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



All text and product images are the intellectual property and copyright of Pipestock Limited

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
356917PVCu Socket Plain x Threaded 16mm x 3/8" £6.52 78%
£1.43
356918PVCu Socket Plain x Threaded 20mm x 1/2" £7.05 78%
£1.55
356919PVCu Socket Plain x Threaded 25mm x 3/4" £7.62 78%
£1.68
356920PVCu Socket Plain x Threaded 32mm x 1" £9.67 78%
£2.13
356921PVCu Socket Plain x Threaded 40mm x 1 1/4" £15.07 78%
£3.32
356922PVCu Socket Plain x Threaded 50mm x 1 1/2" £18.26 78%
£4.02
356923PVCu Socket Plain x Threaded 63mm x 2" £24.24 78%
£5.33
356924PVCu Socket Plain x Threaded 75mm x 2 1/2" £74.39 78%
£16.37
356925PVCu Socket Plain x Threaded 90mm x 3" £79.47 78%
£17.48
356926PVCu Socket Plain x Threaded 110mm x 4" £99.34 78%
£21.86
