Useful Information

This reducing bush is used to reduce the diameter of one side of a metric PVC fitting. It is glued inside the socket using PVC solvent cement, which should be used along with cleaner to prepare the pipe and fitting for jointing.



Material PVCu
Sizes Available 20mm x 16mm - 315mm x 250mm

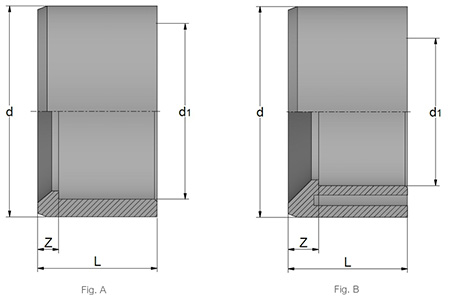

PVC-REDUCING-BUSH-Diagram

Product Code Nominal Size (mm) L1 (mm) L2 (mm) Z (mm) FIG
357058 20 x 16 14 26 14 A
357059 25 x 16 14 26 14 B
357060 25 x 20 3 34 14 A
357061 32 x 16 22 38 14 B
357062 32 x 20 26 43 14 B
357063 32 x 25 31 48 14 A
357064 40 x 20 38 56 14 B
357065 40 x 25 44 67 14 B
357066 40 x 32 51 78 14 A
357067 50 x 25 31 19 12 B
357068 50 x 32 31 22 9 B
357069 50 x 40 31 26 5 A
357070 63 x 32 38 22 16 B
357071 63 x 40 38 26 12 B
357072 63 x 50 38 31 7 A
357073 75 x 40 44 26 18 B
357074 75 x 50 44 31 13 B
357075 75 x 63 44 38 6 A
357076 90 x 50 51 31 20 B
357077 90 x 63 51 38 13 B
357078 90 x 75 51 44 7 A
357079 110 x 63 61 38 23 B
357080 110 x 75 61 44 17 B
357081 110 x 90 61 51 10 A
357082 125 x 75 69 44 25 B
357083 125 x 90 69 51 18 B
357084 125 x 110 69 61 8 A
357085 140 x 90 76 51 25 B
357086 140 x 110 76 61 15 B
357087 140 x 125 76 69 7 A
357088 160 x 110 86 61 25 B
357089 160 x 125 86 69 17 B
357090 160 x 140 86 76 10 A
357091 200 x 160 96 86 10 A
357092 225 x 160 119 86 33 B
357093 225 x 200 119 106 13 A
357094 250 x 160 132 54 12 B
357095 250 x 200 132 97 35 A
357096 250 x 225 132 107 25 A
357097 315 x 200 165 107 58 B
357098 315 x 225 165 120 45 B
357099 315 x 250 165 132 33 B




Approvals:

WRAS Approved Product - sold by Pipestock

WRAS approved

Approval number 1705080

BSI Kitemark Approved Product - sold by Pipestock

BSI Kitemark approved

Licence number KM60041



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



All text and product images are the intellectual property and copyright of Pipestock Limited

Grouped product items
Code Product Name List Price You Save You Pay Quantity
357058 PVCu Reducing Bush Plain 20mm x 16mm £3.18 78%
£0.70
357059 PVCu Reducing Bush Plain 25mm x 16mm £3.64 78%
£0.80
357060 PVCu Reducing Bush Plain 25mm x 20mm £3.64 78%
£0.80
357061 PVCu Reducing Bush Plain 32mm x 16mm £4.53 78%
£1.00
357062 PVCu Reducing Bush Plain 32mm x 20mm £4.53 78%
£1.00
357063 PVCu Reducing Bush Plain 32mm x 25mm £4.53 78%
£1.00
357064 PVCu Reducing Bush Plain 40mm x 20mm £6.14 78%
£1.35
357065 PVCu Reducing Bush Plain 40mm x 25mm £6.14 78%
£1.35
357066 PVCu Reducing Bush Plain 40mm x 32mm £6.14 78%
£1.35
357067 PVCu Reducing Bush Plain 50mm x 25mm £7.31 78%
£1.61
357068 PVCu Reducing Bush Plain 50mm x 32mm £7.31 78%
£1.61
357069 PVCu Reducing Bush Plain 50mm x 40mm £7.31 78%
£1.61
357070 PVCu Reducing Bush Plain 63mm x 32mm £9.47 78%
£2.08
357071 PVCu Reducing Bush Plain 63mm x 40mm £9.47 78%
£2.08
357072 PVCu Reducing Bush Plain 63mm x 50mm £9.73 78%
£2.14
357073 PVCu Reducing Bush Plain 75mm x 40mm £18.09 78%
£3.98
357074 PVCu Reducing Bush Plain 75mm x 50mm £18.09 78%
£3.98
357075 PVCu Reducing Bush Plain 75mm x 63mm £18.09 78%
£3.98
357076 PVCu Reducing Bush Plain 90mm x 50mm £31.34 78%
£6.89
357077 PVCu Reducing Bush Plain 90mm x 63mm £31.34 78%
£6.89
357078 PVCu Reducing Bush Plain 90mm x 75mm £31.34 78%
£6.89
357079 PVCu Reducing Bush Plain 110mm x 63mm £43.09 78%
£9.48
357080 PVCu Reducing Bush Plain 110mm x 75mm £44.48 78%
£9.79
357081 PVCu Reducing Bush Plain 110mm x 90mm £44.48 78%
£9.79
357082 PVCu Reducing Bush Plain 125mm x 75mm £72.83 78%
£16.02
357083 PVCu Reducing Bush Plain 125mm x 90mm £72.83 78%
£16.02
357084 PVCu Reducing Bush Plain 125mm x 110mm £72.83 78%
£16.02
357085 PVCu Reducing Bush Plain 140mm x 90mm £94.65 78%
£20.82
357086 PVCu Reducing Bush Plain 140mm x 110mm £94.65 78%
£20.82
357087 PVCu Reducing Bush Plain 140mm x 125mm £94.65 78%
£20.82
357088 PVCu Reducing Bush Plain 160mm x 110mm £127.92 78%
£28.14
357089 PVCu Reducing Bush Plain 160mm x 125mm £127.92 78%
£28.14
357090 PVCu Reducing Bush Plain 160mm x 140mm £127.92 78%
£28.14
357091 PVCu Reducing Bush Plain 200mm x 160mm £254.29 78%
£55.94
357092 PVCu Reducing Bush Plain 225mm x 160mm £372.21 78%
£81.89
357093 PVCu Reducing Bush Plain 225mm x 200mm £372.21 78%
£81.89
357094 PVCu Reducing Bush Plain 250mm x 160mm £788.08 78%
£173.38
357095 PVCu Reducing Bush Plain 250mm x 200mm £788.08 78%
£173.38
357096 PVCu Reducing Bush Plain 250mm x 225mm £788.08 78%
£173.38
357097 PVCu Reducing Bush Plain 315mm x 200mm £1,253.69 78%
£275.81
357098 PVCu Reducing Bush Plain 315mm x 225mm £1,253.69 78%
£275.81
357099 PVCu Reducing Bush Plain 315mm x 250mm £1,253.69 78%
£275.81
