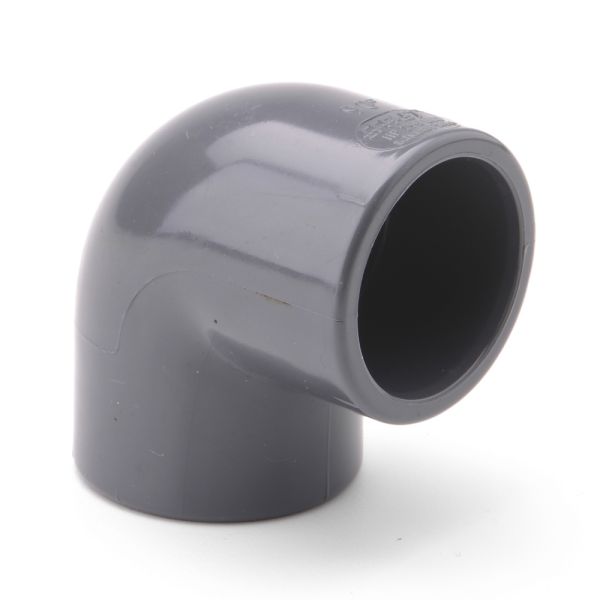

PVC Metric Elbow 90°

Skip to the beginning of the images gallery

More Info

Useful Information

This elbow is used to join together two pieces of metric PVC pipe, creating an angle of 90°. PVC solvent cement should be used along with cleaner to bond the pipes and fitting together.

Material	PVCu
Sizes Available	16 - 315mm

Elbow-90-Diagram

Product Code	Nominal Size (mm)	L (mm)	Z (mm)	E (mm)
356819	16	14	9	23
356820	20	16	11	27
356821	25	19	14	33
356822	32	22	17	41
356823	40	26	23	50
356824	50	31	28	61
356825	63	38	34	75
356826	75	44	40	89
356827	90	51	48	106
356828	110	61	58	129
356829	125	69	66	145
356830	140	76	72	164
356831	160	86	81	188
356832	200	106	102	232
356833	225	119	115	258
356834	250	131	188	287
356835	315	164	236	359

Approvals:

WRAS approved

Approval number 1705080

BSI Kitemark approved

Licence number KM60041

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

All text and product images are the intellectual property and copyright of Pipestock Limited

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
356819	PVCu Elbow 90 Plain 16mm	£3.24	78%	You Pay: £0.71
356820	PVCu Elbow 90 Plain 20mm	£4.20	78%	You Pay: £0.92
356821	PVCu Elbow 90 Plain 25mm	£4.84	78%	You Pay: £1.06
356822	PVCu Elbow 90 Plain 32mm	£5.93	78%	You Pay: £1.30
356823	PVCu Elbow 90 Plain 40mm	£10.59	78%	You Pay: £2.33
356824	PVCu Elbow 90 Plain 50mm	£13.41	78%	You Pay: £2.95
356825	PVCu Elbow 90 Plain 63mm	£20.61	78%	You Pay: £4.53
356826	PVCu Elbow 90 Plain 75mm	£47.20	78%	You Pay: £10.38
356827	PVCu Elbow 90 Plain 90mm	£60.31	78%	You Pay: £13.27
356828	PVCu Elbow 90 Plain 110mm	£91.52	78%	You Pay: £20.13
356829	PVCu Elbow 90 Plain 125mm	£177.39	78%	You Pay: £39.03
356830	PVCu Elbow 90 Plain 140mm	£249.35	78%	You Pay: £54.86
356831	PVCu Elbow 90 Plain 160mm	£354.96	78%	You Pay: £78.09
356832	PVCu Elbow 90 Plain 200mm	£716.75	78%	You Pay: £157.69
356833	PVCu Elbow 90 Plain 225mm	£985.01	78%	You Pay: £216.70
356834	PVCu Elbow 90 Plain 250mm	£2,376.19	78%	You Pay: £522.76
356835	PVCu Elbow 90 Plain 315mm	£3,115.11	78%	You Pay: £685.32
