PVC Metric Cross 90°
Useful Information
Crosses are used to join together four pieces of metric PVC pipe of the same diameter at branches of 90°. PVC solvent cement should be used along with cleaner to bond the pipes and fitting together.
| Material | PVCu |
| Sizes Available | 20 - 63mm |

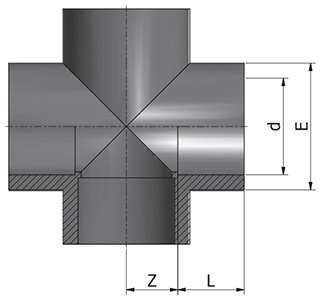

| Product Code | Nominal Size (mm) | L (mm) | Z (mm) | E (mm) |
| 356720 | 20 | 16 | 11 | 28 |
| 356721 | 25 | 19 | 14 | 34 |
| 356722 | 32 | 22 | 17 | 42 |
| 356723 | 40 | 26 | 21 | 51 |
| 356724 | 50 | 31 | 26 | 61 |
| 356725 | 63 | 38 | 33 | 75 |
Approvals:
 |
WRAS approved Approval number 1705080 |
 |
BSI Kitemark approved Licence number KM60041 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
