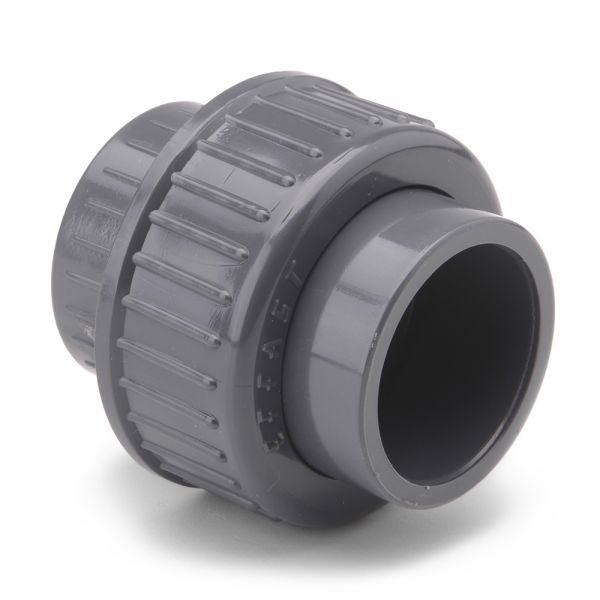

PVC Union Inch x Metric Plain

Loading...
Useful Information

Technical Specification

Material Unplasticised Polyvinyl Chloride (PVC-U)
Pressure Rating 15 bar
Operating Temperature 0°C and 60°C
Installation Type Solvent Weld

Approvals

Description

An inch x metric plain PVC union is designed to connect an imperial PVC pipe to a metric PVC pipe, creating a reliable, leak-proof joint with the added benefit of easy disassembly. This union fitting is essential for systems requiring a seamless transition between imperial and metric pipe standards, commonly used in water distribution, irrigation, and industrial applications. By using PVC solvent cement and cleaner, the union provides a strong bond that can be separated for maintenance or adjustments when needed.

Key Features

  • Imperial-to-Metric Connection: Enables smooth joining of imperial and metric PVC pipes, facilitating integration in mixed-standard systems.
  • Easy Disconnect: Allows for quick disassembly, making it ideal for applications that require frequent maintenance or modifications.
  • Durable Material: Made from high-quality unplasticised polyvinyl chloride (PVC-U), providing durability, rigidity, and resistance to corrosion.
  • Reliable Pressure Rating: Rated up to 15 bar across all sizes, suitable for demanding applications.
  • Simple Installation: Compatible with PVC solvent cement, ensuring a strong, leak-proof connection.
  • Available in Multiple Sizes: A range of size options to accommodate various imperial and metric pipe combinations.
SKU Nominal Size d (mm) Rp (inch) L1 (mm) L2 (mm) Z (mm) H (mm) E (mm) F (inch)
356516 1/2" x
20mm
20 1/2 16 15 14 45 43 1
356517 3/4" x
25mm
25 3/4 19 16.3 15.7 51 54 1 1/4
356518 1" x
32mm
32 1 22 19.5 15.5 57 60 1 1/2
356519 1 1/4" x
40mm
40 1 1/4 27 21.4 19.6 68 75 2
356520 1 1/2" x
50mm
50 1 1/2 31 21.4 27.6 80 81 2 1/4
356521 2" x
63mm
63 2 38 25.7 34.3 98 99 2 3/4
356522 3" x
90mm
90 3 51 33.3 40.7 125 134 4

IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
356516PVCu Adaptor Union Plain 1/2" x 20mm £25.26 78%
£5.56
356517PVCu Adaptor Union Plain 3/4" x 25mm £28.35 78%
£6.24
356518PVCu Adaptor Union Plain 1" x 32mm £43.78 78%
£9.63
356519PVCu Adaptor Union Plain 1 1/4" x 40mm £54.96 78%
£12.09
356520PVCu Adaptor Union Plain 1 1/2" x 50mm £70.28 78%
£15.46
356521PVCu Adaptor Union Plain 2" x 63mm £82.49 78%
£18.15
356522PVCu Adaptor Union Plain 3" x 90mm £326.64 78%
£71.86
