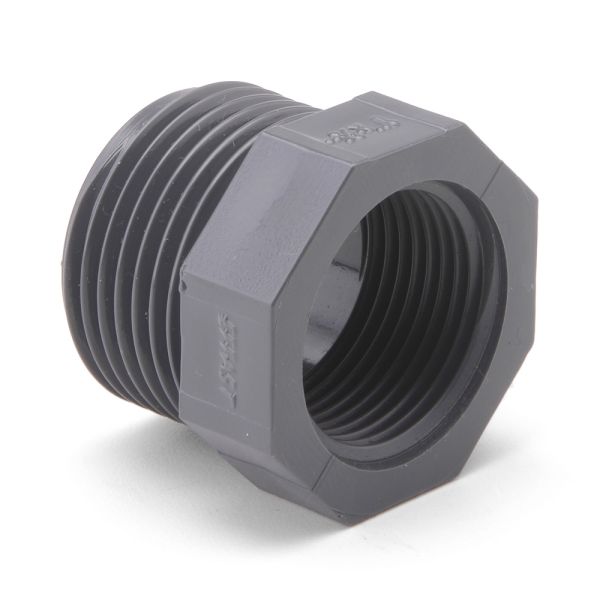

PVC Reducing Bush Threaded

Loading...
Useful Information

This PVC reducing bush is used to convert from a larger threaded fitting to a smaller fitting.

The threaded ends will connect to standard BSP threaded fittings, such as those available in our threaded PVC fittings range.



Material Polyvinyl chloride - unplasticised
Pressure Rating Up to 15 bar
Operating Temperature 5°C to 60°C



PVC Threaded Reducing Bush

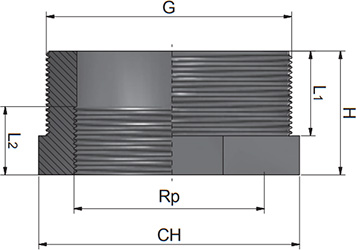

Product Code Nominal Size (inch) L1 (mm) L2 (mm) Z (mm) O (mm)
357053 3/4 x 1/2 16 15 13 30
357054 1 x 3/4 19 16 15 36
357055 1 1/4 x 1 21 19 16 46
357056 1 1/2 x 1 1/4 21 21 14 50
357057 2 x 1 1/2 26 21 18 65
359826 2 1/2 x 2 30 26 21 80
359827 3 x 2 1/2 33 30 20 95
359828 4 x 3 39 33 24 120



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

Approvals:

BSI Kitemark Approved Product - sold by Pipestock

BSI Kitemark approval KM60041



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



All text and product images are the intellectual property and copyright of Pipestock Limited

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
357053PVCu Reducing Bush Threaded 3/4" x 1/2" £10.09 74%
£2.62
357054PVCu Reducing Bush Threaded 1" x 3/4" £13.52 74%
£3.52
357055PVCu Reducing Bush Threaded 1 1/4" x 1" £29.98 74%
£7.80
357056PVCu Reducing Bush Threaded 1 1/2" x 1 1/4" £32.23 74%
£8.38
357057PVCu Reducing Bush Threaded 2" x 1 1/2" £42.03 74%
£10.93
359826PVCu Reducing Bush Threaded 2 1/2" x 2" £46.45 74%
£12.08
359827PVCu Reducing Bush Threaded 3" x 2 1/2" £57.02 74%
£14.83
359828PVCu Reducing Bush Threaded 4" x 3" £93.06 74%
£24.20
