PVC Adaptor Plain M x Thread F

Loading...
Useful Information

Technical Specification

Material Unplasticised Polyvinyl Chloride (PVC-U)
Pressure Rating 15 bar
Operating Temperature 0°C and 60°C
Installation Type Solvent Weld/Threaded

Approvals

Description

A plain male x female threaded PVC adaptor is a versatile fitting that enables the addition of a female BSP thread connection to a plain-ended PVC pipe. This adaptor is commonly used in systems requiring a connection point for threaded components such as valves, gauges, or other equipment. The plain end is solvent-welded to the PVC pipe, while the threaded female end allows for easy attachment to standard BSP threaded fittings. Ideal for water distribution, irrigation, and industrial fluid systems, this adaptor provides a secure, leak-proof connection that combines the reliability of a solvent-welded joint with the flexibility of a threaded fitting.

Key Features

  • Dual Connection Type: Combines a plain male end for solvent welding with a female BSP threaded end, allowing for a seamless transition between pipe and threaded components.
  • Secure and Leak-Proof: Provides a reliable connection that prevents leaks and ensures efficient flow within the system.
  • High-Quality Material: Constructed from unplasticised polyvinyl chloride (PVC-U), known for its rigidity, durability, and resistance to corrosion, making it ideal for demanding applications.
  • Consistent Pressure Rating: Rated up to 15 bar across all sizes, suitable for various high-demand installations.
  • Easy Installation: Plain male end for solvent-welded connections and female threaded end for BSP fittings, providing quick and secure adaptability in mixed systems.

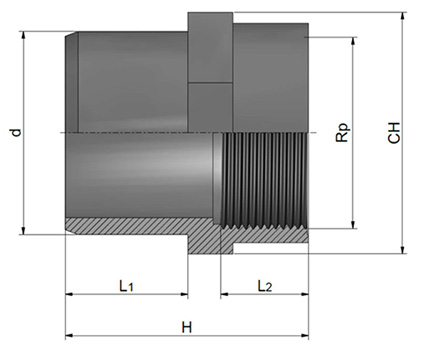

PVC-Adaptor-Plain-Thread

Product Code d (inch) Rp (inch) L1 (mm) L2 (mm) H (mm) CH (mm)
356410 1/2 1/2 17 15 40 30
356411 3/4 3/4 20 16.3 45 36
356412 1 1 23 19.1 51 46
356413 1 1/4 1 1/4 27 21.4 58 55
356414 1 1/2 1 1/2 32 21.4 64 65
356415 2 2 39 26 75 75
359768 2 1/2 2 1/2 44 30.2 88 90



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
356410PVCu Adaptor Male Spigot Plain x Threaded Female 1/2" £7.56 74%
£1.97
356411PVCu Adaptor Male Spigot Plain x Threaded Female 3/4" £8.73 74%
£2.27
356412PVCu Adaptor Male Spigot Plain x Threaded Female 1" £10.68 74%
£2.78
356413PVCu Adaptor Male Spigot Plain x Threaded Female 1 1/4" £13.94 74%
£3.62
356414PVCu Adaptor Male Spigot Plain x Threaded Female 1 1/2" £18.00 74%
£4.68
356415PVCu Adaptor Male Spigot Plain x Threaded Female 2" £25.83 74%
£6.72
359768PVCu Adaptor Male Spigot Plain x Threaded Female 2 1/2" £46.73 74%
£12.15
