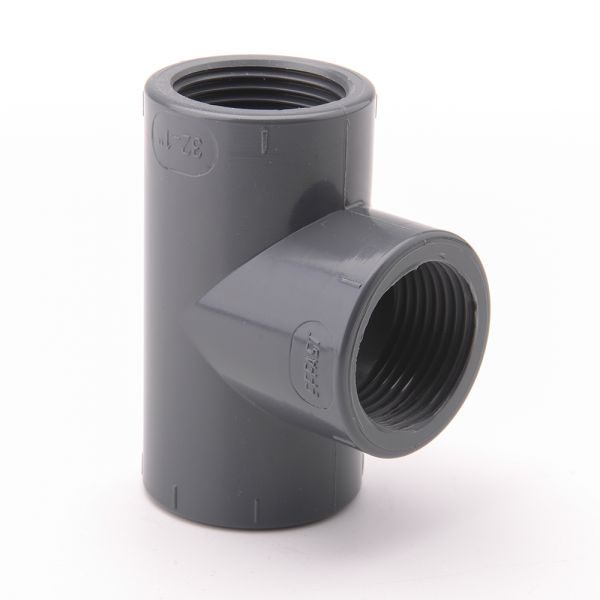

PVC Tee 90° Threaded
This tee is used to join three standard BSP threaded fittings together.
The threaded ends will connect to standard BSP threaded fittings, such as those available in our threaded PVC fittings range.
| Material | Polyvinyl chloride - unplasticised |
| Pressure Rating | Up to 15 bar |
| Operating Temperature | 5°C to 60°C |

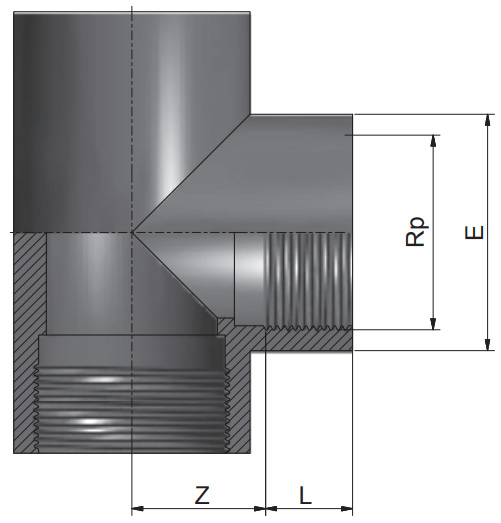

| Product Code | Nominal Size (Inch) | L1 - L2 (mm) | Z1 - Z2 (mm) | E (mm) |
| 359810 | 3/8 | 11 | 12 | 24 |
| 357175 | 1/2 | 15 | 12 | 28 |
| 357176 | 3/4 | 16 | 17 | 34 |
| 357177 | 1 | 19 | 20 | 42 |
| 357178 | 1 1/4 | 21 | 26 | 51 |
| 357179 | 1 1/2 | 21 | 36 | 62 |
| 357180 | 2 | 26 | 45 | 77 |
| 357181 | 2 1/2 | 30 | 53 | 89 |
| 357182 | 3 | 33 | 65 | 106 |
| 357183 | 4 | 39 | 79 | 129 |
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
Approvals:
 |
BSI Kitemark approval KM60041 |
