PVC Tee 90° Plain x Thread
Technical Specification
- Material: Unplasticised Polyvinyl Chloride (PVCu)
- Sizes: 1/2" to 3"
- Pressure rating: 15 bar
- Temperature range: 0°C to 60°C
- Connection type: Solvent weld/Threaded
- Colour: Grey
- Standards:
- WRAS approved
- BSI Kitemark-certified
Description
This PVCu plain x threaded 90 degree tee is designed for branching an imperial PVCu pipe system while incorporating a BSP threaded connection point for equipment, valves or instrumentation. The two solvent-weld sockets provide strong, permanent joints with the pipe, while the threaded outlet offers a secure mechanical connection that can be assembled and removed when required.
Manufactured from corrosion-resistant PVCu, the fitting delivers dependable performance in water systems, industrial processes and general engineering installations. Its smooth internal bore helps maintain efficient flow through the main line and side branch, even when transitioning between connection types.
For more information, please visit our PVCu Pressure Pipe Guide!
Key Features & Benefits
- Mixed connection design: Combines solvent weld and BSP thread for versatile system integration
- Convenient branching: Creates a 90-degree side outlet for equipment or secondary pipe runs
- Strong solvent weld joints: Provide permanent leak-resistant connections on the main line
- Durable threaded branch: Ideal for attaching valves, gauges or fittings requiring mechanical connection
- Corrosion-resistant PVCu: Maintains long service life without rust, pitting or scale formation
- Smooth internal bore: Supports efficient flow through both the run and the branch

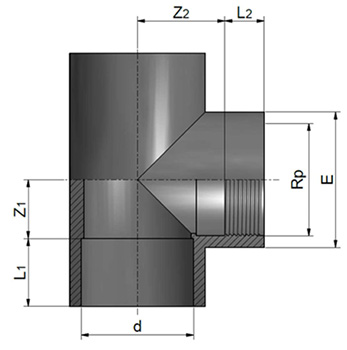

Dimensions
| SKU | Nominal Size / d / Rp (") | L1 (mm) | L2 (mm) | Z1 (mm) | Z2 (mm) | E (mm) |
| 357168 | 1/2 | 17 | 15 | 11 | 13 | 28 |
| 357169 | 3/4 | 19 | 16.3 | 14 | 17 | 34 |
| 357170 | 1 | 23 | 19.1 | 17 | 21 | 42 |
| 357171 | 1 1/4 | 27 | 21.4 | 21 | 27 | 51 |
| 357172 | 1 1/2 | 32 | 21.4 | 26 | 37 | 61 |
| 357173 | 2 | 39 | 26 | 33 | 46 | 75 |
| 359425 | 2 1/2 | 44 | 30.2 | 39 | 53 | 89 |
| 357174 | 3 | 52 | 33.3 | 47 | 65 | 106 |
