PVC Tank Connector Plain x Thread

Loading...
Useful Information

Tank connectors are also known as bulkheads and these are supplied with 2 threaded nuts and 1 gasket.

PVC solvent cement should be used along with cleaner to bond the pipes and plain ended fittings together.

The threaded end will connect to a standard BSP threaded fitting, such as those available in our threaded PVC fittings range.



Material Polyvinyl chloride - unplasticised
Pressure Rating Up to 15 bar (size dependent)
Operating Temperature 5°C to 60°C

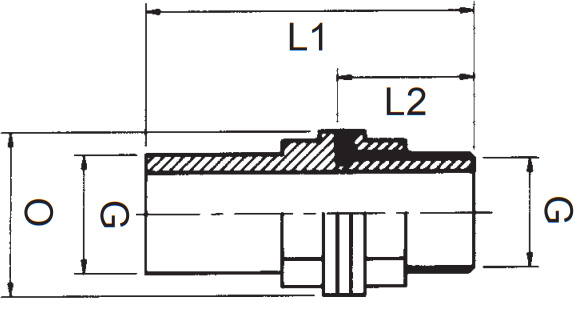

PVC-Tank-Connector-plain-threaded

Product Code Nominal Size (inch) L1 (mm) L2 (mm) O (mm)
357147 3/8 - - -
357148 1/2 77 42 38
357149 3/4 77 42 42
357150 1 103 55 55
357151 1 1/4 121 70 65
357152 1 1/2 128 73 72
357153 2 154 82 93
357154 2 1/2 164 94 106
357155 3 202 110 125
357156 4 230 140 154



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

Approvals:

WRAS Approved Product - sold by Pipestock

WRAS approval 1705075



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



All text and product images are the intellectual property and copyright of Pipestock Limited

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
357147PVCu Tank Connector Plain x Threaded 3/8" £40.95 70%
£12.29
357148PVCu Tank Connector Plain x Threaded 1/2" £21.66 74%
£5.63
357149PVCu Tank Connector Plain x Threaded 3/4" £24.74 74%
£6.43
357150PVCu Tank Connector Plain x Threaded 1" £52.63 74%
£13.68
357151PVCu Tank Connector Plain x Threaded 1 1/4" £98.23 74%
£25.54
357152PVCu Tank Connector Plain x Threaded 1 1/2" £113.87 74%
£29.61
357153PVCu Tank Connector Plain x Threaded 2" £124.43 74%
£32.35
357154PVCu Tank Connector Plain x Threaded 2 1/2" £184.26 74%
£47.91
357155PVCu Tank Connector Plain x Threaded 3" £211.50 74%
£54.99
357156PVCu Tank Connector Plain x Threaded 4" £226.96 74%
£59.01
