PVC Reducing Bush Plain x Thread
Technical Specification
- Material: Unplasticised Polyvinyl Chloride (PVCu)
- Sizes: 1/2" to 1"
- Pressure rating: 15 bar (size dependent)
- Temperature range: 0°C to 60°C
- Connection type: Solvent weld
- Colour: Grey
- Standards:
- WRAS approved
- BSI Kitemark-certified
Description
This PVCu reducing bush with plain x threaded connection is designed to adapt an imperial PVCu socket to a smaller BSP threaded outlet. It’s ideal where a transition is needed from larger solvent-welded pipework to smaller threaded valves, instruments or fittings without replacing the existing socket.
The plain solvent weld end forms a strong, permanent bond with PVCu pipe or fitting when installed using standard PVCu cleaner and solvent cement. The threaded outlet provides a secure mechanical attachment point that can be assembled and removed for maintenance or adjustments. Made from corrosion-resistant PVCu, this reducing bush delivers dependable performance in water services, industrial systems and general engineering applications. The smooth internal bore helps maintain efficient flow through the reduced connection.
For more information, please visit our PVCu Pressure Pipe Guide!
Key Features & Benefits
- Mixed connection capability: Joins larger solvent weld pipework to smaller BSP threaded fittings
- Compact size reduction: Provides an efficient transition without bulky adapters
- Strong solvent weld joint: Ensures a permanent, leak-resistant seal on the plain end
- Durable BSP thread: Allows secure mechanical connection for valves and equipment
- Corrosion-resistant PVCu: Offers long-term performance without rust or scale
- Smooth internal bore: Supports steady flow through the reduced and threaded transition

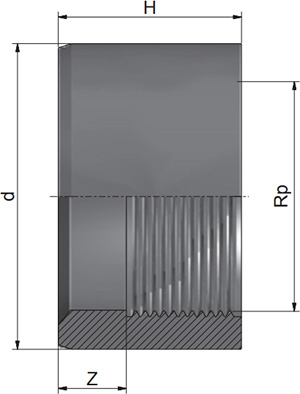

Dimensions
| SKU | Nominal Size / d (") | Rp (") | L (mm) | Z (mm) | H (mm) |
| 357044 | 1/2 | 3/8 | 11.4 | 5.6 | 17 |
| 357048 | 3/4 | 1/2 | 15 | 4 | 19 |
| 357052 | 1 | 3/4 | 16.3 | 6.7 | 23 |
Downloads
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
