PVC Hose Adaptor

Loading...
Useful Information

This PVC hose adaptor is used to connect a hose to a standard BSP female threaded fitting, such as those available in our threaded PVC fittings range.



Material Polyvinyl chloride - unplasticised
Pressure Rating Up to 15 bar
Operating Temperature 5°C to 60°C

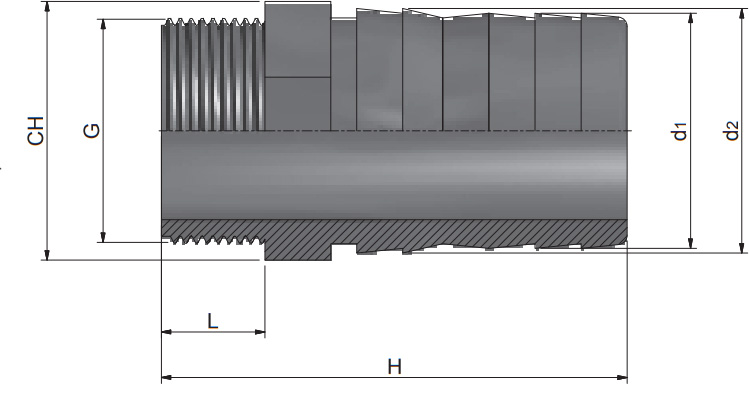

PVC Threaed Hose Adaptor

Product Code Nominal Size (inch x mm) L (mm) H (mm) D1 (mm) D2 (mm) O (mm)
356963 3/8 x 16mm 12 64 16 18 19
356964 1/2 x 20mm 15 70 20 22 24
356965 3/4 x 25mm 17 76 25 27 30
356966 1 x 32mm 20 80 32 34 36
356967 1 1/4 x 40mm 22 92 40 42 46
356968 1 1/2 x 50mm 23 99 50 52 50
356969 2 x 63mm 26 118 60 63 65



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

Approvals:

BSI Kitemark Approved Product - sold by Pipestock

BSI Kitemark approval KM60041



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



All text and product images are the intellectual property and copyright of Pipestock Limited

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
356963PVCu Hose Tail Threaded x Barb 3/8" x 16mm £8.67 74%
£2.25
356964PVCu Hose Tail Threaded x Barb 1/2" x 20mm £9.05 74%
£2.35
356965PVCu Hose Tail Threaded x Barb 3/4" x 25mm £11.98 74%
£3.11
356966PVCu Hose Tail Threaded x Barb 1" x 32mm £14.26 74%
£3.71
356967PVCu Hose Tail Threaded x Barb 1 1/4" x 40mm £20.88 74%
£5.43
356968PVCu Hose Tail Threaded x Barb 1 1/2" x 50mm £24.87 74%
£6.47
356969PVCu Hose Tail Threaded x Barb 2" x 63mm £38.38 74%
£9.98
