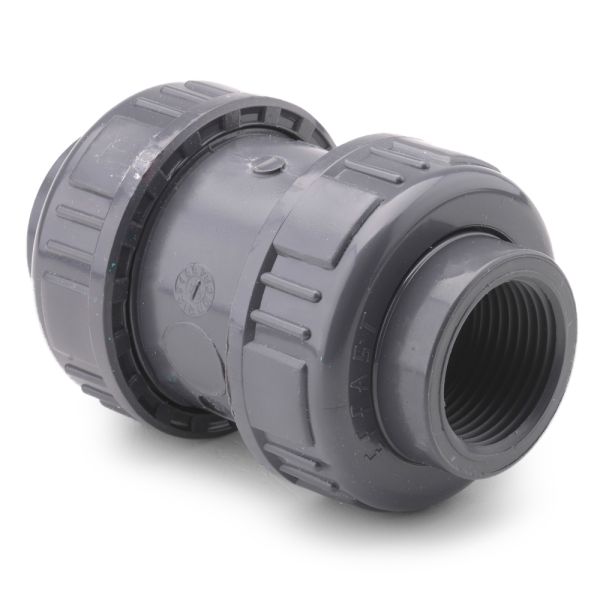

Check Valve Spring Threaded

Skip to the beginning of the images gallery

Useful Information

These check valves are manufuctured from PVC with stainless steel springs and threaded ends.

They are quick and easy to install and are available in a range of sizes from 1/2" to 4".

Material	Polyvinyl chloride - unplasticised (PVCu)
Seal Material	EPDM
Temperature	0 - 60°C
Max Pressure	16 bar
Notes	Threaded union ends

PVC-Check-Valve-Size-Diagram

Product Code	D (Inch)	L (mm)	Z (mm)	H (mm)
356241	1/2	17	46	78
356242	3/4	20	52	90
356243	1	23	60	104
356244	1 1/4	27	68	120
356245	1 1/2	31	78	140
356246	2	38	93	169
356247	2 1/2	44	139	227
356248	3	51	139	242
359976	4	61	160	282

IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

All text and product images are the intellectual property and copyright of Pipestock Limited

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
356241	PVCu Check Valve Spring EPDM Threaded 1/2"	£66.73	65%	£23.36
356242	PVCu Check Valve Spring EPDM Threaded 3/4"	£79.71	65%	£27.90
356243	PVCu Check Valve Spring EPDM Threaded 1"	£84.82	65%	£29.69
356244	PVCu Check Valve Spring EPDM Threaded 1 1/4"	£98.51	65%	£34.48
356245	PVCu Check Valve Spring EPDM Threaded 1 1/2"	£140.90	65%	£49.32
356246	PVCu Check Valve Spring EPDM Threaded 2"	£185.38	65%	£64.88
356247	PVCu Check Valve Spring EPDM Threaded 2 1/2"	£448.85	65%	£157.10
356248	PVCu Check Valve Spring EPDM Threaded 3"	£578.18	65%	£202.36
359976	PVCu Check Valve EPDM Spring Threaded 4"	£1,017.22	65%	£356.03
