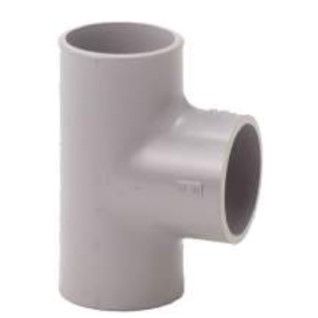

Tee 90° Plain
Useful Information
Our range of Georg Fischer PVC-C fittings are manufactured from Chlorinated Polyvinylchloride and can be used in applications where exceptional chemical resistance is required.
| Manufacturer | Georg Fischer |
| Temperature Range | 0°C to 80°C |
| Pressure Rating | 16 Bar |
| Size Range | 16 - 225mm |
| Product Code | d (mm) | z (mm) | D (mm) | L (mm) | Weight (kg) |
| 398550 | 16 | 9 | 21 | 23 | 0.011 |
| 398551 | 20 | 11 | 25 | 27 | 0.019 |
| 398552 | 25 | 14 | 31 | 33 | 0.029 |
| 398553 | 32 | 17 | 40 | 39 | 0.055 |
| 398554 | 40 | 21 | 49 | 49 | 0.100 |
| 398555 | 50 | 26 | 61 | 57 | 0.156 |
| 398556 | 63 | 34 | 76 | 71 | 0.291 |
| 398557 | 75 | 40 | 90 | 83 | 0.476 |
| 398558 | 90 | 47 | 107 | 97 | 0.824 |
| 398559 | 110 | 55 | 128 | 116 | 1.411 |
| 398560 | 160 | 81 | 193 | 167 | 4.982 |
| 398561 | 225 | 114 | 256 | 233 | 9.268 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
