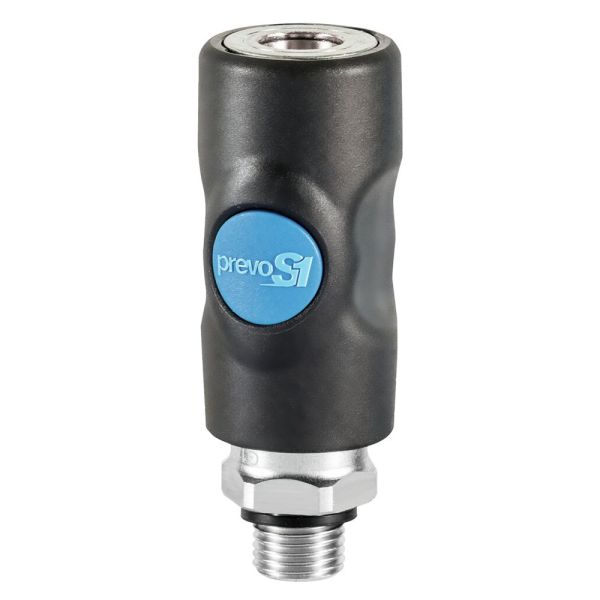

Prevost ISO Profile 6150 B 6mm Male Coupling

Loading...
Useful Information

Technical Specification

  • Manufacturer: Prevost
  • Material: Composite polymer body
  • Operating Pressure: 2 to 12 bar
  • Operating Temperature: -15°C to +70°C
  • Flow Rate: 833 l/min at 6 bar
  • Thread Type: Male BSPP
  • Connection Size: 6mm

Key Features

  • Durable Material: Composite polymer body ensures superior resistance to wear and corrosion for long-lasting reliability.
  • High Flow Rate: Provides an efficient flow rate of 833 l/min at 6 bar for optimal performance.
  • Wide Operating Range: Functions reliably under pressures ranging from 2 to 12 bar.
  • Temperature Resilience: Operates effectively in temperatures between -15°C and +70°C.
  • ISO Profile 6150 B Compatibility: Guarantees secure and leak-free integration with standard systems.
  • Easy Installation: Features a male BSPP thread and 6mm connection size for quick and hassle-free setup.
  • Lightweight and Strong: Combines ease of use with robust durability for various applications.

Description

The Prevost ISO Profile 6150 B 6mm Male Coupling is a durable and efficient component designed for compressed air systems. Constructed from a robust composite polymer body, it provides excellent resistance to wear, corrosion, and harsh operating conditions. Delivering a flow rate of 833 l/min at 6 bar, this coupling ensures consistent and efficient air delivery, making it ideal for a wide range of industrial and commercial applications. With ISO 6150 B profile compatibility, it provides secure and leak-free connections, while the male BSPP thread and 6mm connection size simplify installation.

Product Code A (mm) B (mm) C (mm)
406107 76.3 30 20
406108 78.3 30 23
406109 82.3 30 26


If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
406107PV Air Coupling ISO 6150 B ISI 06 M BSPP 1/4" £29.86 34%
£19.71
406108PV Air Coupling ISO 6150 B ISI 06 M BSPP 3/8" £30.00 34%
£19.80
406109PV Air Coupling ISO 6150 B ISI 06 M BSPP 1/2" £31.17 34%
£20.57
