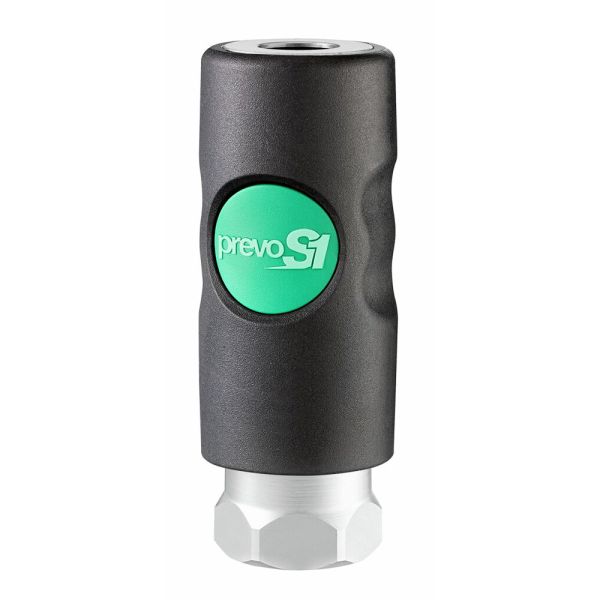

Prevost Euro Profile 10.4mm Female Coupling

Loading...
Useful Information

Technical Specification

  • Manufacturer: Prevost
  • Material: Composite polymer body, Steel internal shaft, Nitrile NBR O-ring
  • Operating Pressure: 2 to 12 bar
  • Operating Temperature: -15°C to +70°C
  • Flow Rate: 3530 l/min at 6 bar
  • Thread Type: Female BSPP
  • Connection Size: 10.4mm

Key Features

  • Durable Construction: Composite polymer body provides superior resistance to wear, corrosion, and harsh environments.
  • High Flow Rate: 3530 l/min at 6 bar, supporting demanding industrial applications.
  • Wide Operating Range: Functions effectively under pressures from 2 to 12 bar.
  • Temperature Resilience: Operates reliably in temperatures ranging from -15°C to +70°C.
  • Euro Profile Design: Ensures secure, leak-free integration with standard Euro profile systems.
  • Easy Installation: Female BSPP thread and 10.4mm connection size make installation quick and hassle-free.
  • Versatile Application: Ideal for a variety of compressed air systems and industrial setups.

Description

The Prevost Euro Profile 10.4mm Female Coupling is a high-performance component designed for use in industrial compressed air systems. Crafted with a durable composite polymer body, it delivers exceptional resistance to wear and corrosion, ensuring reliable and long-lasting performance. With a high flow rate of 3530 l/min at 6 bar, this coupling is ideal for heavy-duty applications that demand efficiency and consistent airflow. Its Euro profile compatibility ensures a secure, leak-free connection, while the female BSPP thread and 10.4mm connection size allow for straightforward installation.


Product Code A (mm) B (mm) C (mm)
406070 94 37 26
406071 102 37 30
406072 93 37 26


If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
406070PV Air Coupling Euro ESI 11EB F BSPP 3/8" £68.39 34%
£45.14
406071PV Air Coupling Euro ESI 11EB F BSPP 1/2" £66.90 34%
£44.15
406072PV Air Coupling Euro ESI 11EB F BSPP 3/4" £68.63 34%
£45.30
