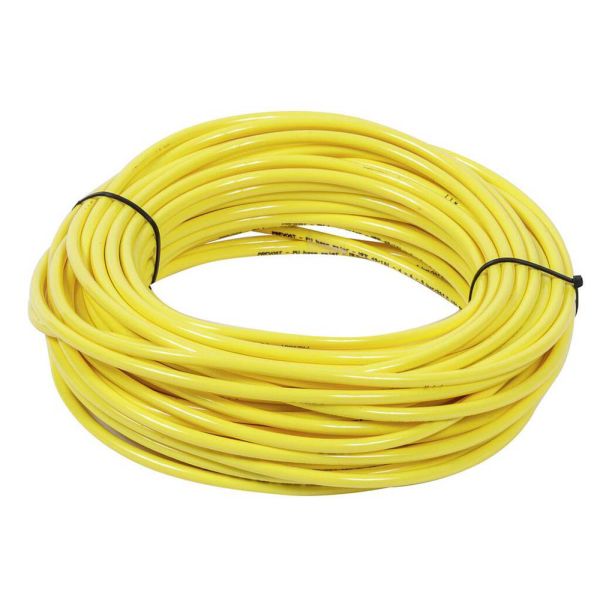

Polyamide Yellow Tube

Loading...
Useful Information

Key Features / Tech Specs / Dimensions:

  • Manufacturer: Prevost
  • Material: Polyamide
  • Colour: Yellow
  • Temperature: -20° to + 80°C



Product Code ID/OD (mm) Mini Bend Radius (mm) Max Operating Pressure @ 20°C (BAR)
407113 2 x 4 25 30
407119 2.7 x 4 30 15
407128 4 x 6 35 27
407134 6 x 8 55 19
407140 8 x 10 90 15
407155 2 x 4 25 30
407161 2.7 x 4 30 15
407170 4 x 6 35 27
407176 6 x 8 55 19
407182 8 x 10 90 15
407197 8 x 10 90 15
407203 6 x 8 55 19
407209 2.7 x 4 30 15
407215 4 x 6 35 27





IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
407113PV Polyamide Yellow Tube 25m x 4mm x 2mm £34.32 34%
£22.65
407119PV Polyamide Yellow Tube 25m x 4mm x 2.7mm £27.20 34%
£17.95
407128PV Polyamide Yellow Tube 25m x 6mm x 4mm £44.24 34%
£29.20
407134PV Polyamide Yellow Tube 25m x 8mm x 6mm £53.04 34%
£35.01
407140PV Polyamide Yellow Tube 25m x 10mm x 8mm £70.82 34%
£46.74
407155PV Polyamide Yellow Tube 100m x 4mm x 2mm £155.61 34%
£102.70
407161PV Polyamide Yellow Tube 100m x 4mm x 2.7mm £122.77 34%
£81.03
407170PV Polyamide Yellow Tube 100m x 6mm x 4mm £193.96 34%
£128.01
407176PV Polyamide Yellow Tube 100m x 8mm x 6mm £205.27 34%
£135.48
407182PV Polyamide Yellow Tube 100m x 10mm x 8mm £357.76 34%
£236.12
407197PV Polyamide Yellow Tube 300m x 10mm x 8mm £787.67 34%
£519.86
407203PV Polyamide Yellow Tube 500m x 8mm x 6mm £975.52 34%
£643.84
407209PV Polyamide Yellow Tube 1000m x 4mm x 2.7mm £1,009.19 34%
£666.07
407215PV Polyamide Yellow Tube 1000m x 6mm x 4mm £1,635.40 34%
£1,079.36
